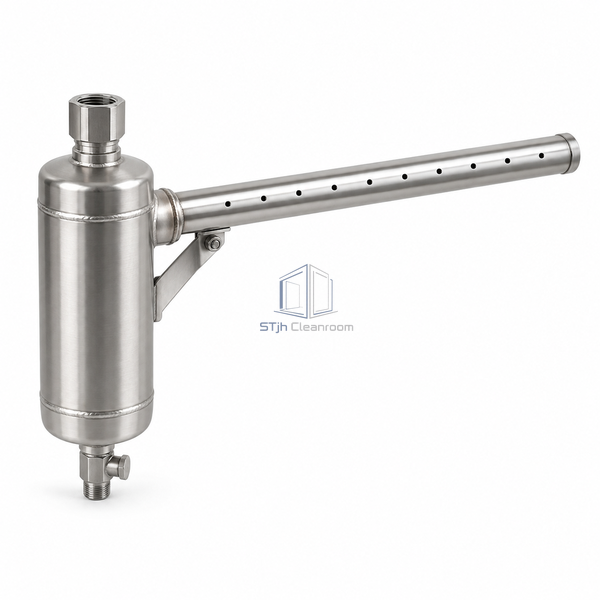

STjh half-inch inlet direct steam injection humidifier with a compact separator and slender dispersion tube on white.

STJH-DIRECT-STEAM-INJECTION-HUMIDIFIER-12INLET

Direct Steam Injection Humidifier 1/2-Inch Inlet

The smallest stainless steam-injection body for clean ducts supplied with dry conditioned plant steam.

1/2 in NPT steam inlet
Compact 1100-class body
0.30-3.66 m manifold range

Request a Quote Browse Products

Product Introduction

This compact direct-injection humidifier uses a 1/2 in NPT steam inlet and the smallest body cross-section in the selected series. Stainless wetted parts and manifold lengths from 0.30 to 3.66 m allow the assembly to fit small clean AHU ducts. Because steam comes from the plant system rather than an integral boiler, separator, trap, condensate drainage and control-valve sizing determine whether the discharge remains dry.

Key Features

Small duct package

The compact body and inlet suit low steam flow and restricted AHU wall space.

Stainless wetted path

300-series stainless components resist condensate exposure in clean-air service.

Plant-steam efficiency

The unit conditions and meters available steam without a local electrical boiling vessel.

Technical Parameters

Steam Inlet	1/2 in NPT
Body Class	Compact 1100 cross-section
Wetted Material	300-series stainless steel
Manifold Length	0.30-3.66 m range
Steam Source	Conditioned plant steam
Control	Modulating steam valve
Condensate Management	Separator, trap and drain connection
Installation	Small clean AHU duct
Distribution	Single dispersion manifold by selection
Customization	Available based on the intended application and operating environment.

Applications

For small cleanroom air handlers and supply ducts where dry conditioned plant steam is available near the unit.

Solutions for Your Application

Wet plant steam spits condensate from the small dispersion manifold.Provide correct separator, trap, supply pitch and drainage before the control valve and manifold.

The 1/2 in valve cannot deliver the peak humidity load at available steam pressure.Size the inlet and valve from actual mass flow and pressure drop, then choose a larger body where required.

Available Options

Specify plant steam pressure, required output, valve characteristic, manifold length, separator, trap, drain, actuator and duct location.

Planning a Direct Steam Injection Humidifier 1/2-Inch Inlet specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
