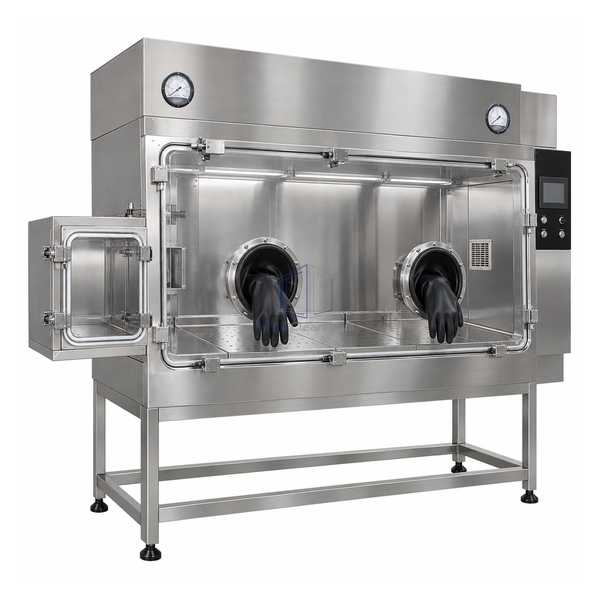

STjh 6 ft hazardous-compounding closed RABS with an extended work deck

STJH-CLOSED-RABS-6FT-ISO4-CHEMO

Closed Restricted Access Barrier System 6 ft ISO 4 Negative-Pressure Hazardous-Compounding

A six-foot hazardous-compounding closed RABS providing a longer negative-pressure deck for separated sterile process stages.

6 ft intermediate length
One or two transfer chambers
Separated process staging

Request a Quote Browse Products

Product Introduction

The intermediate chassis adds two feet of working length over the compact version without the room demand of the eight-foot system. It can be arranged with one or two transfer chambers, allowing purchasers to balance directional material flow against wall space and daily batch volume.

Key Features

Balanced work capacity

The six-foot deck gives routine batches room for measuring, active mixing and final-container handling.

Selectable transfer architecture

One interchange saves space, while two can establish separate supply and waste or product routes.

Condition alarms

Differential-pressure indication and an audible alarm make loss of the intended operating state visible to users.

Technical Parameters

Standard Length	6 ft
Depth	2.5 ft
Height	6.75 ft
Main Chamber	Negative pressure, ISO Class 4, vertical unidirectional airflow
Transfer Chambers	One or two, ISO Class 5 at static and dynamic conditions
Transfer-Chamber Length	12 in each
Airflow	At least 400 cfm; at least 40 fpm at 6 in from filter face
Filtration	HEPA, nominal 99.99% DOP at 0.3 µm, with bag-out
Controls	Differential-pressure gauges, audible alarm and mechanical door interlock
Customization	Transfer count, glove layout, worktop fittings, exhaust arrangement and support height can be matched to the intended compounding sequence.

Applications

Routine hazardous sterile compounding, oncology dose batches and pharmacy workflows that need distinct supply, mixing and finishing positions inside one barrier.

Solutions for Your Application

The four-foot model is too crowded, but an eight-foot unit exceeds the available room.Use the six-foot chassis as the intermediate capacity and footprint option.

The pharmacy is unsure whether one or two transfer chambers are necessary.Map inbound supplies and outbound product or waste, then select a shared or directional two-airlock arrangement.

Available Options

Single or dual transfer chambers, glove-port quantity, secondary HEPA, lift stand, shelving, IV bar, outlets and disposal ports can be configured.

Planning a Closed Restricted Access Barrier System 6 ft ISO 4 Negative-Pressure Hazardous-Compounding specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
