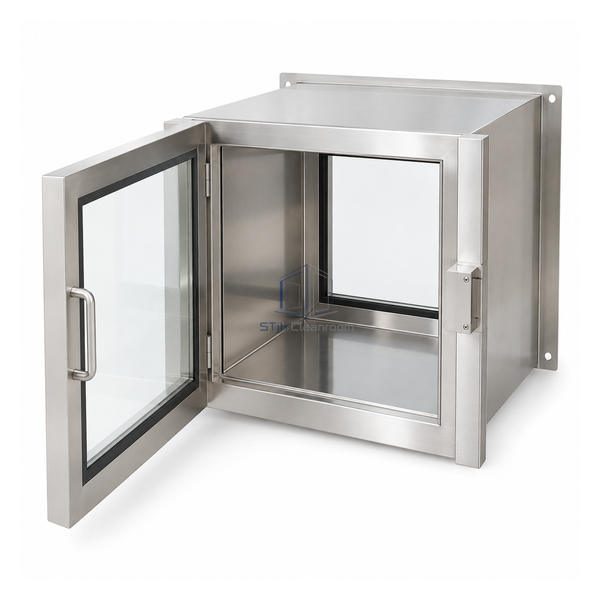

STjh medium 550 by 486 by 550 mm polished stainless transfer hatch with safety-glass door and dual wall flanges

STJH-CLEANROOM-TRANSFER-HATCH-550X486X550

Cleanroom Transfer Hatch 550 × 486 × 550 mm

A medium standard hatch sized for routine trays, packaged consumables and laboratory component transfers.

550 mm square loading face
486 mm practical tray depth
Mechanical or electromagnetic interlock

Request a Quote Browse Products

Product Introduction

The 550 x 486 x 550 mm model balances handling capacity with a moderate wall opening. Its polished double-skin stainless construction withstands common cleanroom cleaning solutions, and the opposed doors can use a mechanical interlock or optional electromagnetic control. Compared with the 400 mm hatch, the additional depth supports trays without moving to the bulky 700 mm format.

Key Features

Routine tray capacity

The intermediate chamber accepts medium trays and packaged components that exceed compact hatch dimensions.

Cleanable double-skin body

Polished stainless surfaces and concealed construction reduce exposed crevices around the transfer space.

Door configuration choice

Acrylic or safety-glass doors provide visibility, while solid stainless arrangements can limit light transmission.

Technical Parameters

Nominal Dimensions	550 W x 486 D x 550 H mm
Body Construction	Double-skin polished stainless steel
Standard Material	304 stainless steel
Optional Material	316 stainless steel
Door Type	Manual hinged opposing doors
Interlock	Mechanical standard; electromagnetic optional
Window Options	Acrylic or stainless-framed safety glass
Installation Flanges	Two 30 x 30 mm wall flanges
Cleaning Compatibility	Typical cleanroom cleaning solutions
Customization	Available based on the intended application and operating environment.

Applications

Suitable for laboratory trays, wrapped consumables and medium process components moving across a pharmaceutical, healthcare or research cleanroom wall. Determine whether operators need visual confirmation through glazed doors before choosing the panel style.

Solutions for Your Application

Compact hatches force medium trays to be angled during loading.Use the 550 mm face and 486 mm depth to keep routine trays level through the transfer.

The facility needs door-status integration rather than a purely mechanical sequence.Select the electromagnetic interlock option and define the local indicators and release behavior.

Available Options

Choose stainless grade, glazed or solid doors, interlock type, flush/projecting trim and shelf. Door handing and viewing-panel material can follow the adjacent room workflow.

Planning a Cleanroom Transfer Hatch 550 × 486 × 550 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
