A fitting could fall directly at the joint between stacked sections.
Position connections with the section interfaces in mind so the utility arrangement fits within the assembled wall.
STJH-CLEANROOM-SERVICE-CHASE-WALL-PANEL-TECHNICAL-STACK

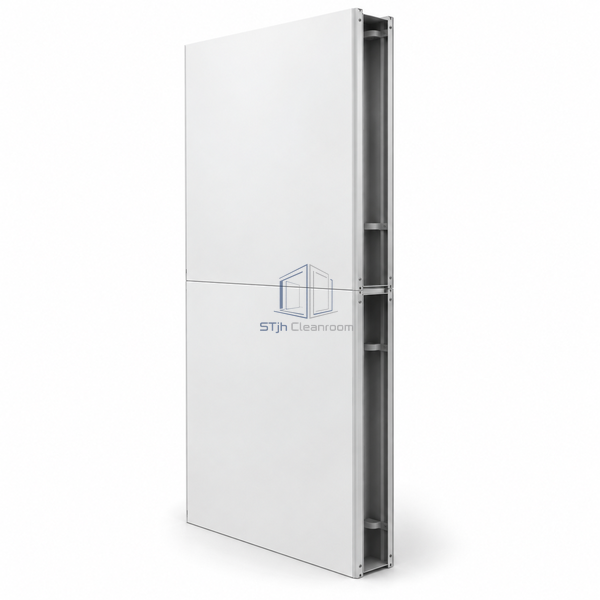

Cleanroom Service Chase Wall Panel Stackable Hollow Technical
Stackable hollow wall sections for taller utility routes.
- Vertical stacking accommodates walls above a single module height.
- The unfilled interior provides room for mechanical, electrical and plumbing routes.
Product Introduction
The technical module has a hollow body for building services in a 50.8 mm cleanroom wall system. Separate sections stack above one another to continue the utility route through a taller partition.
Key Features
- Vertical stacking accommodates walls above a single module height.
- The unfilled interior provides room for mechanical, electrical and plumbing routes.
Technical Parameters
| Wall System Depth | 50.8 mm |
|---|---|
| Construction | Hollow technical panel |
| Services | Mechanical, electrical and plumbing |
| Assembly | Vertically stackable |
| Panel Width | Configured to the wall bay (mm) |
| Panel Height | Configured to the stacked wall arrangement (mm) |
| Service Opening Dimensions | Sized to the selected utility connections (mm) |
| Service Opening Positions | Arranged to the MEP routing layout |
| Recommended Applications | EV battery facilities and life-science interiors |
| Customization | Available for the intended wall height, utilities and operating environment. |
Applications
- Tall life-science partition routes
- Battery-facility utility integration
Solutions for Your Application
Several service types compete for the available wall cavity.
Lay out the pipe and cable envelopes together before selecting their positions within the hollow panel.
Available Options
- Stacked height arrangement
- Service aperture positioning
Planning a Cleanroom Service Chase Wall Panel Stackable Hollow Technical specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
