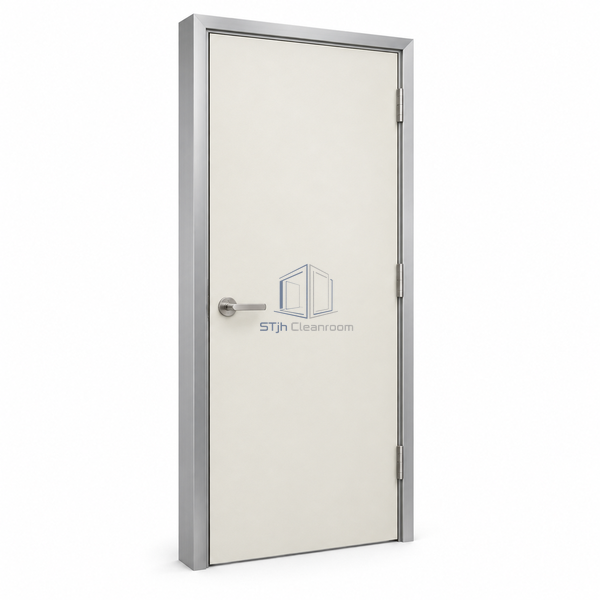

STjh 900 mm HPL masonry personnel door with a pale laminate face and deep perimeter frame against white.

STJH-CLEANROOM-PERSONNEL-ACCESS-DOOR-MASONRY-900

Cleanroom Personnel Access Door 900 mm HPL Masonry-Wall

A 900 mm HPL personnel door with a 40 mm leaf and solid-wall installation frame.

HPL facing gives the leaf a smooth nonmetallic surface.
The intermediate door-hole width balances wall-space use and staff passage.
A solid-wall frame avoids thin-panel-only installation details.

Request a Quote Browse Products

Product Introduction

The laminate-faced panel offers an intermediate-width personnel entrance for existing masonry rooms. A frame sized for walls at least 105 mm thick surrounds the 40 mm single leaf, while a conventional handle lock provides everyday access. The 900 x 2100 mm specification is the wall-hole size rather than the clear passage after installation. This version is useful where a smooth laminate finish is preferred alongside interior wall finishes and where the frame needs to bridge the depth of a substantial solid partition.

Key Features

HPL facing gives the leaf a smooth nonmetallic surface.
The intermediate door-hole width balances wall-space use and staff passage.
A solid-wall frame avoids thin-panel-only installation details.

Technical Parameters

Wall Opening Width	900 mm
Wall Opening Height	2100 mm
Door Leaf Thickness	40 mm
Facing Material	HPL
Wall Compatibility	Solid wall, at least 105 mm
Number of Leaves	One
Operating Action	Swing
Access Hardware	Handle lock
Frame Type	Masonry-wall surround
Customization	Available for the room layout and intended staff use.

Applications

Staff entrances in converted laboratory rooms
Laminate-finished access points in solid-wall buildings

Solutions for Your Application

The new door should match a nonmetallic interior finish.

An HPL door face coordinates with laminate wall finishes while using the solid-wall frame interface.

Opening width is being estimated from the leaf alone.

Use the 900 mm wall-hole dimension as the starting interface and deduct the actual frame and operating clearances.

Available Options

Conventional upper closer
Alternative standard HPL surface finish
Left- or right-hand opening
