Cleanroom HEPA Terminal Housing 610 x 610 mm

Standard square welded housing with adaptable seals and room-side filter access.

Standard square filter format simplifies terminal layout.
Choice of diffuser faces separates filtration from discharge pattern.

Request a Quote Browse Products

Product Introduction

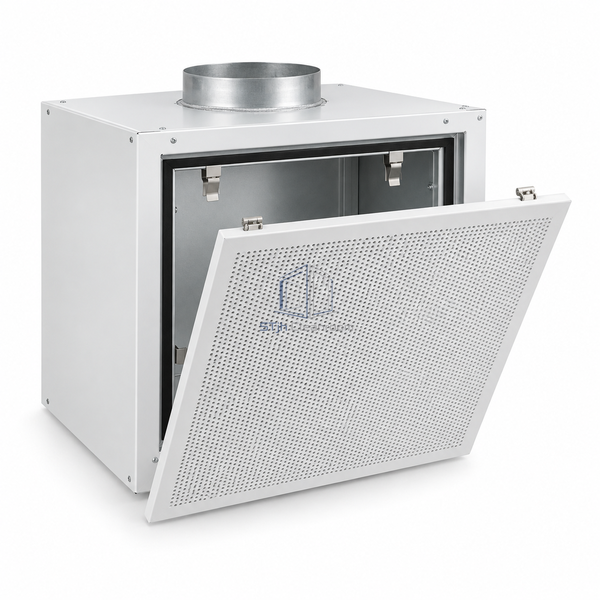

The 697 mm outer frame accepts a 610 mm square filter element. A hinged diffusion face opens onto the clamping and sealing area, allowing the housing to remain installed while the filter is removed from below.

Key Features

Standard square filter format simplifies terminal layout.
Choice of diffuser faces separates filtration from discharge pattern.

Technical Parameters

Filter Dimensions	610 x 610 mm
Outside Frame	697 x 697 mm
Body Assembly	Fully welded
Filter Access	Room side
Front Access	Hinged diffusion plate
Seal Options	DIN gasket, PU gasket or gel
Clamping	Tool-free filter clamps
Face Options	Perforated, swirl, four-way or adjustable vane
Ceiling Compatibility	Suspended or T-bar arrangements
Customization	Available for the selected filtration and room-distribution requirements.

Applications

Pharmaceutical terminal filtration
Hospital clean-air ceiling modules

Solutions for Your Application

The required air pattern may change without changing the filter size.

Select a compatible diffusion face while retaining the square filter-housing format.

Available Options

Top-entry connection
Side-entry balancing damper
