An overhead closer arm interferes with the desired entrance detail.
The closing mechanism sits in the floor-spring position beneath the pivoted leaf.

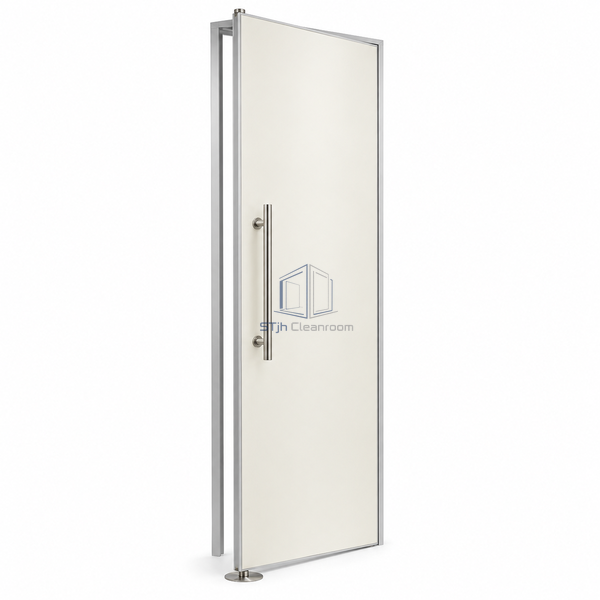

STJH-CLEANROOM-FLOOR-SPRING-DOOR-HPL-800
Cleanroom Floor-Spring Door 800 mm HPL
A compact HPL pivot door with concealed floor-spring control for an 800 mm opening.
- Floor-level closing hardware clears the upper frame area.
- The narrow HPL leaf suits compact circulation openings.
- Perimeter rubber gaskets cushion the closing interface.
Product Introduction
The closer is positioned at floor level rather than above the leaf, leaving the upper frame free from an exposed closer arm. An HPL face covers the single door panel and perimeter rubber gasketing follows the leaf edges. The 800 x 2100 mm door-hole size gives this version a narrow staff-passage format. Its pivot support and floor-spring arrangement must be integrated with the finished floor, while the surrounding cleanroom wall frame provides a smooth transition around the opening.
Key Features
- Floor-level closing hardware clears the upper frame area.
- The narrow HPL leaf suits compact circulation openings.
- Perimeter rubber gaskets cushion the closing interface.
Technical Parameters
| Door-Hole Width | 800 mm |
|---|---|
| Door-Hole Height | 2100 mm |
| Leaf Arrangement | Single |
| Facing | HPL |
| Closing Mechanism | Floor spring |
| Support Type | Pivoted leaf |
| Perimeter Seal | Rubber gasket |
| Handle | Stainless steel |
| Panel-Wall Options | 50, 75 or 100 mm |
| Customization | Available for the floor construction and intended passage use. |
Applications
- Compact hygienic staff passages
- Interior entrances needing a clear upper-frame appearance
Solutions for Your Application
The closer location could be overlooked during floor work.
Coordinate the floor-spring pocket and access cover with the finished floor before installation.
Available Options
- Compatible stainless pull-handle selection
- Wall-frame adaptation
- Standard HPL surface finish
Planning a Cleanroom Floor-Spring Door 800 mm HPL specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
