The leaf moves before the bolt can enter its strike.
Magnetic capture helps retain the closing position during engagement.
STJH-CLEANROOM-ELECTRIC-DROP-BOLT-LOCK-HEAVY-MAGNETIC-LATCH

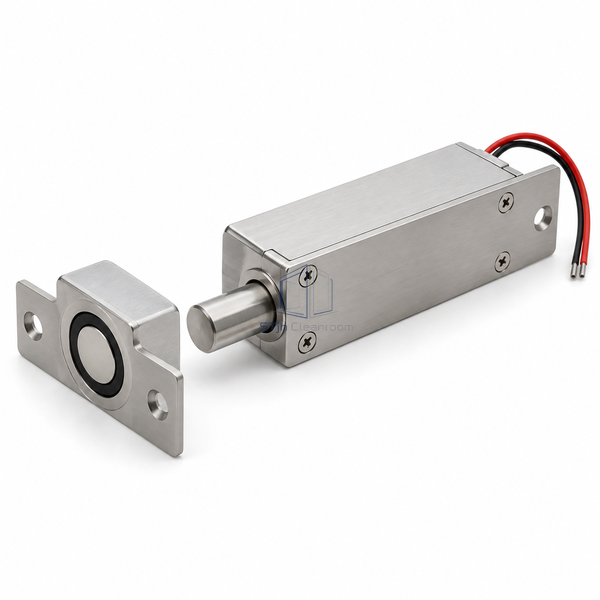

Cleanroom Electric Drop Bolt Lock Heavy-Duty Magnetic-Latch
Stabilize the closing leaf with magnetic capture before a larger electric bolt engages.
- Magnetic capture assists the final door-positioning step.
- The larger pin provides a distinct heavy-duty construction.
- Two monitoring signals help identify incomplete engagement.
Product Introduction
This heavy-duty lock combines a magnetic latching function with a larger stainless deadbolt. The capture action helps hold the leaf in its closed position so that the bolt can enter the strike. Door and bolt monitoring then provide separate status information to the controller. The assembly is intended for installations where leaf movement at closure makes a conventional electric bolt less convenient, while retaining a compact electromechanical lock format.
Key Features
- Magnetic capture assists the final door-positioning step.
- The larger pin provides a distinct heavy-duty construction.
- Two monitoring signals help identify incomplete engagement.
Technical Parameters
| Bolt Diameter | 14.2 mm |
|---|---|
| Bolt Material | Stainless steel |
| Nominal Holding Force | 20,000 N |
| Input Voltage | 12–24 VDC |
| Capture Method | Magnetic latch |
| Door Feedback | Door-position monitoring |
| Bolt Feedback | Bolt-position monitoring |
| Mounting | Mortise or compatible accessory housing |
| Mechanical Engagement | Deadbolt into matched strike |
| Customization | Mounting accessories can be adapted to the door material and operating arrangement. |
Applications
- Heavier access leaves needing closing-position assistance.
- Monitored doors using positive electric deadbolting.
Solutions for Your Application
A door-state signal alone does not reveal the lock state.
Separate bolt feedback reports mechanical engagement.
Available Options
- Surface-mount accessories.
- Compatible glass-mounting hardware.
- Matching strike components.
Planning a Cleanroom Electric Drop Bolt Lock Heavy-Duty Magnetic-Latch specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
