STJH-CARBON-PANEL-FILTER-500X600X50

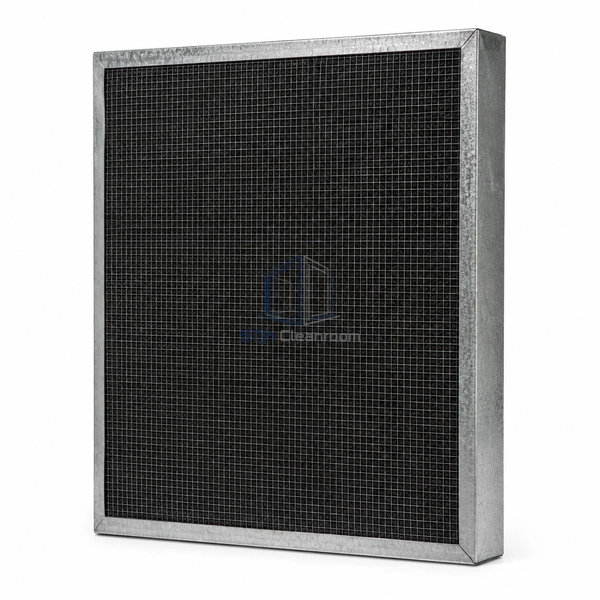

Activated Carbon Panel Filter 500 × 600 × 50 mm

A 50 mm medium-width molecular panel offering more adsorbent contact volume for moderate gas and odor duty.

500 x 600 x 50 mm
300 m3/h airflow
60 Pa clean resistance

Request a Quote Browse Products

Product Introduction

The 500 x 600 x 50 mm version increases both face width and adsorbent depth compared with the slim half panel. Its rated duty of 300 m3/h at 60 Pa provides a practical balance for moderate odor or gas loads in supply, recirculation or exhaust sections. Carbon, impregnated carbon or impregnated activated alumina should be selected against the actual contaminant chemistry.

Key Features

Longer contact path

The 50 mm bed increases adsorbent depth over the slim panel, improving capacity for moderate molecular loading.

Intermediate module width

A 500 mm face fits air handlers that fall between half-module and full-square rack layouts.

Contaminant-specific fill

Available adsorbent families allow the panel to target general VOCs, odors or selected reactive gases.

Technical Parameters

Dimensions	500 x 600 x 50 mm
Rated Airflow	300 m3/h
Initial Pressure Drop	60 Pa
Adsorbent Media	Activated carbon, impregnated carbon or impregnated activated alumina
Frame Material	Galvanized steel or stainless steel
Bed Configuration	Loose-fill molecular panel
Maximum Operating Temperature	80 C
Maximum Relative Humidity	90% RH
Installation Access	Front or side access
Customization	Available based on the intended application and operating environment.

Applications

Used in moderate-duty make-up air, recirculation and exhaust systems serving laboratories, clean-support rooms or industrial processes. It should be preceded by suitable particulate filtration so dust does not mask the adsorbent surface.

Solutions for Your Application

A thin carbon panel reaches breakthrough too quickly in a moderate gas load.The 50 mm bed provides more sorbent volume, while final media chemistry and replacement interval should be based on inlet concentration and humidity.

Loose adsorbent particles migrate into the downstream clean section.Choose the compatible retention construction, install the panel in the correct airflow direction and inspect downstream surfaces during commissioning.

Available Options

Define target contaminants, adsorbent formulation, frame metal, particle-control layer, access side and replacement-monitoring approach.

Planning a Activated Carbon Panel Filter 500 × 600 × 50 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
