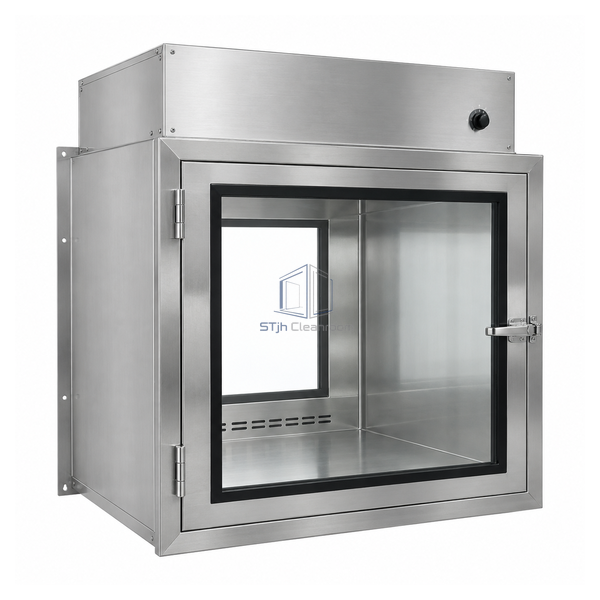

STjh 914 mm recirculating HEPA pass box with a large glazed chamber and compact upper blower housing

STJH-BIOSAFETY-PASS-BOX-RECIRC-914

Biosafety Pass Box 914 mm Recirculating HEPA

A large 914 mm cubic recirculating HEPA pass box for equipment cases and high-volume clean supply loads.

914 mm cubic volume
Large-case transfer
ISO 5 HEPA recirculation

Request a Quote Browse Products

Product Introduction

The 36-inch internal cube is the largest pass box in this group. It accepts bulky equipment cases and consolidated supply loads while retaining the closed-loop ISO 5 airflow principle of the smaller 457 and 610 mm models.

Key Features

Large clear volume

Bulky containers can pass without being divided into several smaller loads.

Closed-loop filtration

HEPA recirculation cleans chamber air without a continuous facility exhaust connection.

Robust stainless shell

304 stainless construction supports frequent large-load handling.

Technical Parameters

Internal Chamber	914 x 914 x 914 mm
Air Cleanliness	ISO 5 internal airflow
Final Filter	HEPA, nominal 99.99% at 0.3 µm
Airflow	Closed-loop recirculating
Construction	304 stainless steel
Door Arrangement	Two-sided pass-through
Load Scale	Large
Typical Loads	Equipment cases and consolidated supplies
Installation	Wall mounted with structural support
Customization	Door support, shelf or roller deck and wall frame can be configured for the load weight.

Applications

Large cleanroom equipment cases, bulk sterile supplies and oversized carriers transferred across controlled boundaries.

Solutions for Your Application

Oversized cases cannot clear a 610 mm chamber.Use the 914 mm cube and confirm door, wall and turning clearances.

Heavy loads are difficult to slide across a flat floor.Configure an appropriate shelf or roller surface and structural wall support.

Available Options

Roller deck, reinforced support, door interlock and mounting trim can be selected.

Planning a Biosafety Pass Box 914 mm Recirculating HEPA specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
