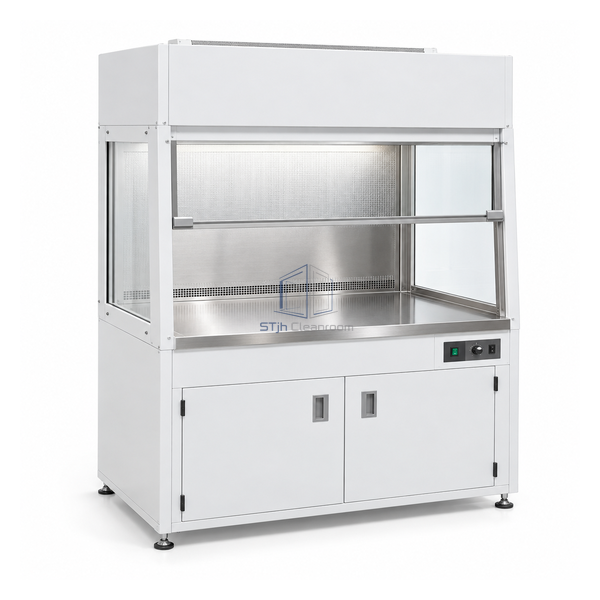

STjh compact 3 foot aseptic laminar workstation with welded cabinet, HEPA downflow and stainless work zone

STJH-ASEPTIC-LAMINAR-WORKSTATION-3FT

Aseptic Laminar Flow Workstation 3 ft

A compact self-contained sterility module for one non-hazardous IV, syringe or sample-preparation station.

35 in compact cabinet width
540 CFM at 90 fpm
Stainless ISO Class 5 work zone

Request a Quote Browse Products

Product Introduction

The three-foot module uses a 35 x 24.25 x 28 in published cabinet envelope and provides a 33.5 in working dimension. At 90 fpm it delivers approximately 540 CFM through an aerosol-challenged 99.99% HEPA filter. A welded steel cabinet surrounds the stainless work area, creating an ISO Class 5 product-protection zone for compact aseptic tasks.

Key Features

Small aseptic footprint

The three-foot size supports one critical preparation task without consuming a standard four-foot bench bay.

Obstacle-sweeping airflow

The combined vertical and horizontal pattern is designed to reduce reverse turbulence around work items.

Cleanable working interior

A stainless work zone sits within the welded cabinet for routine wipe-down.

Technical Parameters

Published Dimensions A/B/C	35 x 24.25 x 28 in
Published Dimension E	33.5 in
Average Airflow	540 CFM at 90 fpm
Final Filter	HEPA, 99.99% at 0.3 µm
Work-Zone Condition	ISO Class 5
Electrical Supply	115 V, 60 Hz, 6.0 A
Heat Load	1000 BTU/h
Shipping Weight	265 lb
Construction	Welded steel with stainless work area
Customization	Available based on the intended application and operating environment.

Applications

For small IV admixture, syringe filling and critical non-hazardous sample preparation. Positive-pressure clean benches protect the product but do not contain hazardous aerosols for the operator or room.

Solutions for Your Application

A four-foot sterility module is too wide for a compact pharmacy bay.Use the 35 in cabinet while keeping the process inside the 33.5 in work dimension.

Operators may use the positive-pressure bench for hazardous preparations.Restrict use to non-hazardous materials and choose containment equipment for hazardous aerosols.

Available Options

Configure work-surface fittings, lighting, electrical connection and support base. Process fixtures should be positioned to preserve the designed airflow around obstructions.

Planning a Aseptic Laminar Flow Workstation 3 ft specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
