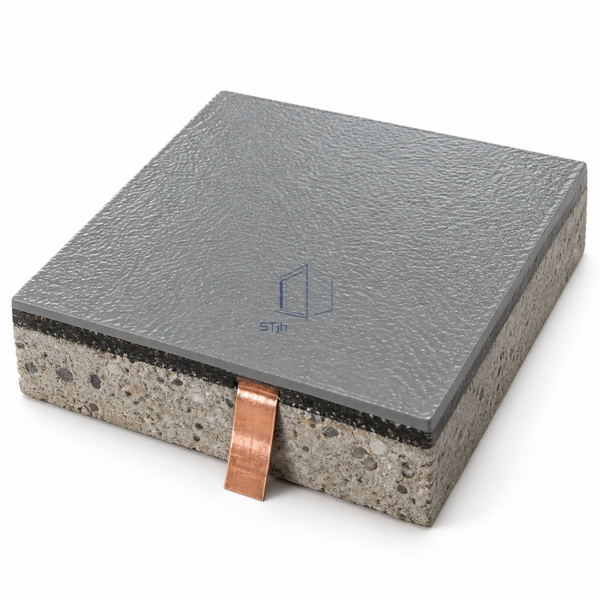

STJH TEXTURED-10 antistatic epoxy sample with a textured gloss face and shallow conductive-layer cut edge on white

STJH-ANTISTATIC-EPOXY-FLOORING-TEXTURED-10

Antistatic Epoxy Flooring 1 mm Textured

A shallow ESD floor using a thixotropic epoxy wearing layer to produce texture without a separate aggregate bed.

Approximately 1 mm system thickness
Thixotropic textured epoxy wearing coat
Conductive primer with earthing connections

Request a Quote Browse Products

About This Product

TEXTURED-10 combines an epoxy primer, grounded conductive primer and textured ESD wearing coat. A thixotropic additive helps the final resin retain its surface profile within an approximately 1 mm construction. Unlike a silicon-carbide broadcast system, it does not require a separate coarse aggregate layer followed by a heavy seal. The build is intended for internal static-sensitive working routes.

Key Features

Staged coating application

The conductive primer is allowed to cure before the wearing coat is placed; room temperature determines the interval between these operations.

Chemical-contact wearing face

The exposed epoxy provides the chemical-contact surface, so cleaner and process-fluid compatibility is assessed for that wearing resin rather than for the buried primer.

Defined cleaning access

A modest texture offers a different walking contact from smooth ESD epoxy while remaining accessible to suitable scrubbing equipment.

Technical Parameters

Wearing Resin	ESD epoxy
Nominal Thickness	Approximately 1 mm
Texture Additive	Thixotropic extender
Layer Structure	Epoxy primer, conductive primer, ESD wearing layer
Finish	Textured gloss
Earthing	Connected through conductive primer
Application Temperature	15-30 °C
Service Environment	Interior
Footwear Interface	Compatible ESD footwear
Customization	Available based on the intended application and operating environment.

Applications

Consider this model for electronics production routes, data-centre support rooms and pharmaceutical service areas. Surface texture, cleaning residues and footwear contact all influence practical performance, so the intended traffic and maintenance method should guide the choice.

Solutions for Your Application

A smooth ESD finish is unsuitable for the room's walking surface.

Use the textured wearing coat while retaining the complete conductive primer and earthing sequence.

Carts return while the new surface is only ready for pedestrians.

Separate initial foot access from light-traffic reopening and full cure, using the actual floor temperature to schedule each stage.

Available Options

Specify the solid colour and perimeter layout, together with the location of grounding connections. The thixotropic formulation should remain consistent across the installation to avoid abrupt changes in surface profile.
