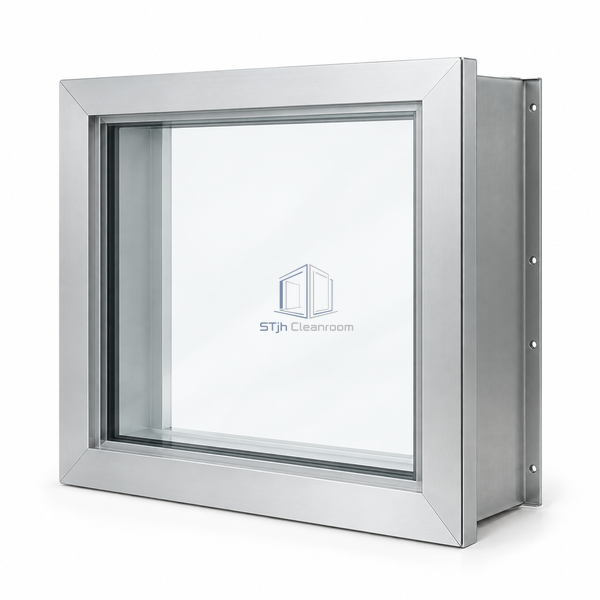

STjh screw-and-clip aluminum cleanroom window on white, showing a deep paired frame with side fixing holes and a clipped opposing glazing face.

STJH-ALUMINUM-FRAMED-CLEANROOM-WINDOW-SCREW-CLIP

Aluminum-Framed Cleanroom Window Screw-and-Clip

A 100 mm wall-system window with a screwed first frame and an opposing clip-on aluminum frame.

Screw fixing anchors the first side directly to the stud structure.
The clip-on opposing frame closes the second face without duplicating the first attachment.
A defined 100 mm wall depth supports consistent integration with the partition.

Request a Quote Browse Products

Product Introduction

The first glazed aluminum frame fixes mechanically to the steel stud structure. An opposing frame then clips against it, completing the two-sided observation assembly within a 100 mm wall system. Standard 6 mm glazing provides the viewing faces. This sequence establishes a positive screw-fixed foundation before the second side closes the opening, making the unit useful for cleanroom partitions that need a mechanically captured frame arrangement across the full depth of the wall.

Key Features

Screw fixing anchors the first side directly to the stud structure.
The clip-on opposing frame closes the second face without duplicating the first attachment.
A defined 100 mm wall depth supports consistent integration with the partition.

Technical Parameters

Frame Construction	Dual aluminum frames
First Frame Fixing	Screwed to stud structure
Opposing Frame Fixing	Clip-on connection
Supporting Structure	Steel studs
Standard Glass Thickness	6 mm
Wall-System Thickness	100 mm
Glazing Layout	Two-sided fixed glazing
Module Formats	Room-height or balustrade glazing
Visible Bonding Border	Approximately 34 mm circumferential width
Customization	Glazed module height and width can be configured for the intended 100 mm cleanroom partition.

Applications

Room-height glazing within cleanroom stud partitions
Balustrade-height laboratory observation bands

Solutions for Your Application

The specification requires positive mechanical attachment to the wall studs.

Secure the first aluminum frame with screws before fitting the opposing clip-on frame.

A shallow insert does not bridge the full partition depth.

The frame pair is configured for the 100 mm wall system.

Available Options

Room-height module format
Balustrade glazing format
Custom module width
