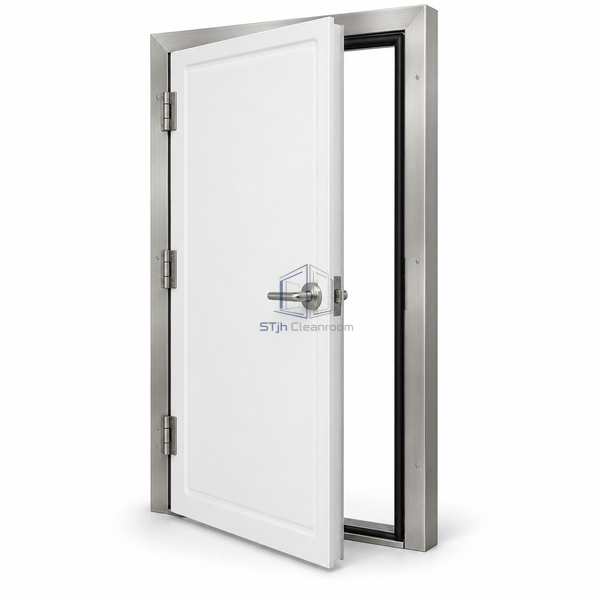

STjh wraparound compression-seal cleanroom door on white, slightly open to reveal the fixed dark perimeter gasket.

STJH-AIRTIGHT-CLEANROOM-SWING-DOOR-WRAPAROUND-COMPRESSION

Airtight Cleanroom Swing Door Wraparound Compression-Seal

A hinged cleanroom door that closes against a fixed neoprene gasket in a wrap-around frame.

The fixed gasket needs no pneumatic inflation cycle.
Wrap-around framing finishes the reveal around the door opening.
A molded blade provides a continuous wipe-clean exterior.

Request a Quote Browse Products

Product Introduction

The wrap-around surround carries a stationary neoprene gasket against which the hinged blade closes. The selected construction uses a molded fiberglass leaf with a foam interior and a smooth gelcoat face, supported at the opening by a hygienic frame. Closing the blade compresses the gasket mechanically rather than inflating it with an air supply. The frame surrounds the wall reveal, providing a defined perimeter junction for a manually operated cleanroom entrance.

Key Features

The fixed gasket needs no pneumatic inflation cycle.
Wrap-around framing finishes the reveal around the door opening.
A molded blade provides a continuous wipe-clean exterior.

Technical Parameters

Opening Motion	Manual hinged swing
Frame Form	Wrap-around hygienic surround
Seal Material	Neoprene
Seal Action	Fixed gasket compressed at closure
Blade Material	Molded fiberglass composite
Core Type	Polyisocyanurate foam
Blade Thickness	40 or 44 mm
Finish	Smooth gelcoat
Threshold Configuration	Flush or sealed threshold detail
Customization	Available for the intended wall interface and operating conditions.

Applications

Cleanroom personnel boundaries using mechanical gasket compression.
Laboratory entrances where a pneumatic seal supply is not required.

Solutions for Your Application

Must compressed air be installed to operate the door gasket?

The fixed neoprene seal is compressed by the closing leaf and does not use an inflatable tube.

How is the wall thickness accommodated at the entrance?

The wrap-around frame provides the reveal interface, with its dimensions selected for the wall construction.

Available Options

Stainless steel or aluminum frame execution.
Compatible door closer and flush viewing panel.

Planning a Airtight Cleanroom Swing Door Wraparound Compression-Seal specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
