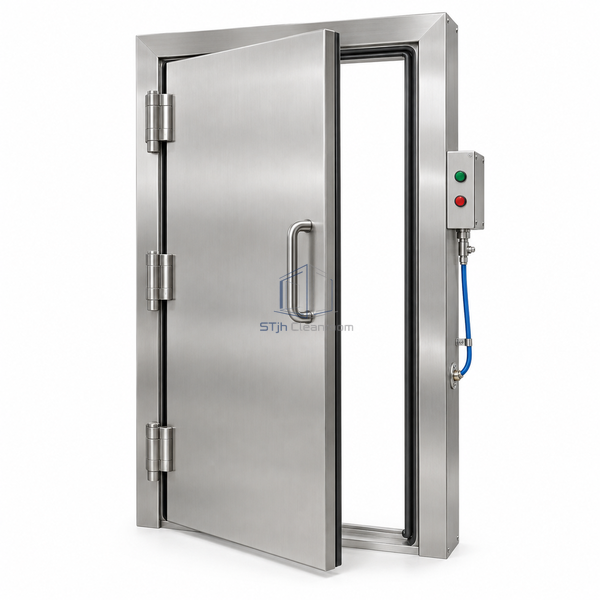

STjh four-side inflatable-seal stainless swing door on white with a perimeter gasket, pneumatic connection and control station.

STJH-AIRTIGHT-CLEANROOM-SWING-DOOR-INFLATABLE-SEAL

Airtight Cleanroom Swing Door Four-Side Inflatable-Seal

A stainless swing-door assembly with a four-sided inflatable gasket and monitored pneumatic sealing.

Pressure monitoring makes the seal supply condition observable.
Four-sided contact includes the bottom of the opening.
A flush floor interface supports frequent wheeled movement.

Request a Quote Browse Products

Product Introduction

An inflatable elastomer seal runs around the complete door perimeter and expands against the closed blade when supplied with compressed air. Stainless construction forms the leaf and architrave, while dedicated controls monitor both seal pressure and the incoming supply. The frame-to-floor detail is kept flush for passage. This arrangement differs from a fixed compression gasket by actively applying and releasing seal contact as part of the door operating sequence.

Key Features

Pressure monitoring makes the seal supply condition observable.
Four-sided contact includes the bottom of the opening.
A flush floor interface supports frequent wheeled movement.

Technical Parameters

Opening Type	Hinged swing door
Leaf and Frame Material	304 or 316 stainless steel
Seal Coverage	Four sides
Seal Material	Inflatable silicone or EPDM
Pneumatic Operation	Compressed-air inflation and release
Seal Pressure	Approximately 2.5 bar configuration available
Monitoring	Seal pressure and incoming supply pressure
Floor Interface	Flush stainless threshold detail
Hinge Material	Stainless steel
Customization	Available for the intended containment boundary and operating environment.

Applications

Laboratory boundaries specified for active pneumatic sealing.
Medical research access with frequent trolley movement.

Solutions for Your Application

How can operators identify a loss of sealing air?

The control arrangement monitors incoming air and seal pressure rather than relying only on door position.

Could the lower sealing detail obstruct the passage?

A flush floor interface allows the inflatable gasket to form bottom contact after the blade is closed.

Available Options

Flush glazed observation panel.
Pneumatic seal-release override and backup supply options.

Planning a Airtight Cleanroom Swing Door Four-Side Inflatable-Seal specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
