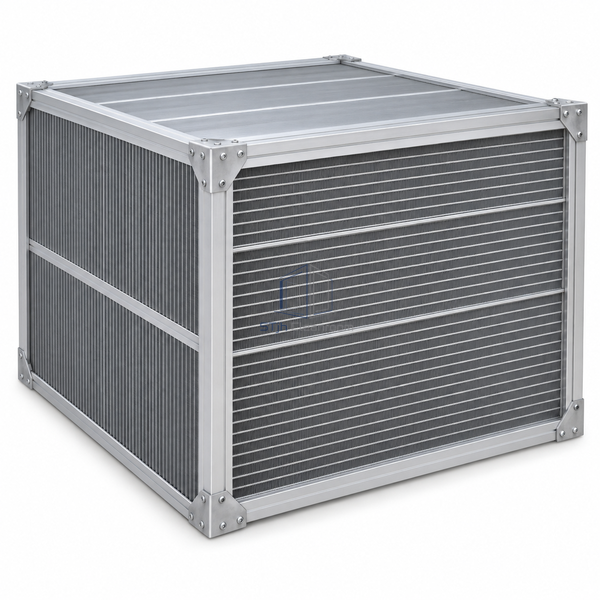

STjh 1200 mm air-to-air plate heat recovery unit with a large deep crossflow block and corner profiles on white.

STJH-AIR-TO-AIR-PLATE-HEAT-RECOVERY-1200MM

Air-to-Air Plate Heat Recovery Unit 1200 mm

The largest single plate core for high-volume separated-stream recovery with no moving parts.

1200 mm large plate
Approximately 1697 mm profile envelope
1500-1700 Pa tight-gap differential

Request a Quote Browse Products

Product Introduction

This H2 core uses 1200 mm plates and module widths from 350-1200 mm. Its 90-degree profile envelope is approximately 1697 mm, making it physically distinct from the two smaller units. At 2.0-3.0 mm spacing, documented maximum differential-pressure capability is 1500-1700 Pa depending on the exact build. The large passive core suits central facilities but requires careful transport, casing support and frost management.

Key Features

Large single-core capacity

The 1200 mm diagonal handles central AHU flow without assembling many small exchangers.

High differential option

Tighter-gap constructions provide documented structural pressure capability for separated streams.

Passive operation

No wheel motor, belt or pumped loop is required for sensible heat transfer.

Technical Parameters

Plate Size	1200 mm
Module Width	350-1200 mm
Profile Envelope	Approximately 1697 mm at 90-degree profile
Plate Spacing	2.0-6.0 mm by selection
Maximum Differential Pressure	1500-1700 Pa at 2.0-3.0 mm spacing
Plate Material	Aluminum
Flow Arrangement	Crossflow
Moving Parts	None
Primary Duty	Large central air-to-air recovery
Customization	Available based on the intended application and operating environment.

Applications

For large clean-facility air handlers requiring separated supply and exhaust sensible heat recovery without rotating components.

Solutions for Your Application

The 1697 mm envelope cannot pass through the plant access route.Coordinate external casing, lifting path and sectional delivery before manufacture.

A large frosted core blocks exhaust airflow during cold weather.Use bypass, preheat, face-and-bypass or defrost control based on the actual psychrometric frost point.

Available Options

Confirm airflow, profile angle, width, spacing, pressure differential, seal, casing, bypass, drainage, frost protection and lifting.

Planning a Air-to-Air Plate Heat Recovery Unit 1200 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
