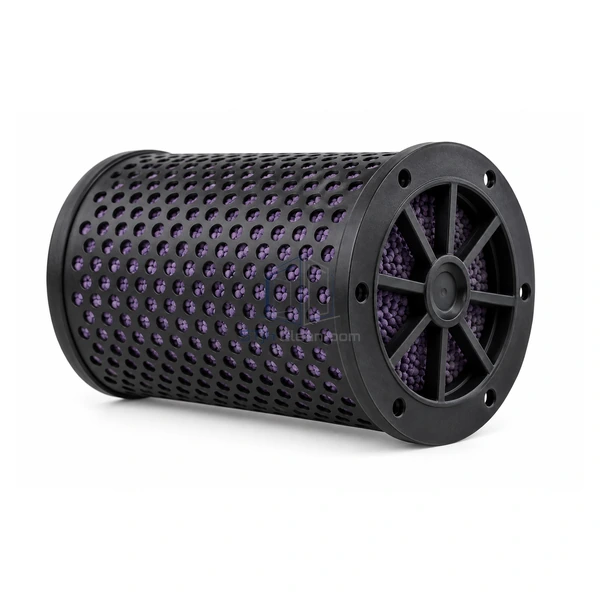

STjh short CYL1300 acid-gas molecular filter cylinder main view

STJH-ACID-GAS-FILTER-CYL1300

Acid Gas Molecular Filter 1300-Class Cylinder

A short acid-target cylinder for compact sixteen-cell banks requiring 1250 m3/h molecular filtration.

148 x 240 mm cylinder
1250 m3/h per 16-cell bank
80 Pa initial resistance

Request a Quote Browse Products

Product Introduction

This 148 mm diameter by 240 mm long cartridge is the compact acid-gas member of the cylinder family. Sixteen cylinders populate a 610 x 610 mm opening to provide 1250 m3/h at 80 Pa initial resistance. Its short bed reduces installed depth and media mass relative to the longer 2600- and 3500-class units, making it suitable where space is limited and acid loading is moderate. The impregnated media formulation must be selected for the identified gases, not simply by cartridge length.

Key Features

Compact acid-control bed

The 240 mm body fits shallow molecular sections and local equipment where the longer cylinder families would conflict with service clearance.

Modular sixteen-cylinder layout

A standard 610 mm square bank uses sixteen cartridges, allowing individual elements to be locked into a dedicated frame.

Reactive acid media

Impregnated adsorbent is selected for the required acid challenge, supporting chemisorption where untreated VOC carbon would be unsuitable.

Technical Parameters

Cylinder Dimensions	148 mm diameter x 240 mm length
Rated System Airflow	1250 m3/h per 16 cylinders
Initial Pressure Drop	80 Pa at rated system airflow
Adsorbent	Acid-target impregnated media
Cylinder Construction	Corrosion-resistant molded cartridge
Cylinders per 610 x 610 mm Opening	16
Nominal Bed Depth	25 mm
Optimum Relative Humidity	40-90% RH for acid-media family
Optimum Temperature	10-60 C for acid-media family
Customization	Available based on the intended application and operating environment.

Applications

For compact cleanroom-support supply, recirculation or local corrosion-control equipment exposed to acidic gases. Use a suitable particulate prefilter and confirm the acid species, humidity and required useful life before fixing the cylinder count.

Solutions for Your Application

The shallow bank may run out of chemical capacity under a sustained acid load.Calculate exposure from measured concentration and airflow; move to a longer bed or increase bank area if the 240 mm cylinder cannot meet the service interval.

Cylinder-to-frame leakage can bypass the acid media even when the cartridges are new.Use the matched locking frame, inspect every molded seal and verify that all sixteen cylinders are fully seated.

Available Options

Specify acid species, impregnated media, operating humidity, sixteen-cell frame, access direction, upstream prefilter, monitoring port and planned change interval.
