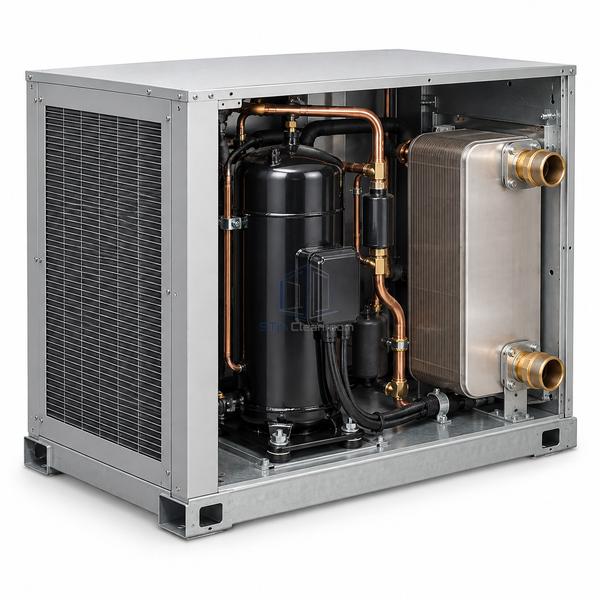

STjh 60000 Btu/h water-cooled condensing unit with a large compressor and broad plate-condenser package on white.

STJH-WATER-COOLED-CONDENSING-UNIT-60000BTUH

Water-Cooled Condensing Unit 60000 Btu/h

The largest published five-ton-class R32 water-cooled condensing unit with the series' highest-capacity compressor and plate condenser.

60000 Btu/h capacity
Five-ton-class package
Largest series plate condenser

Request a Quote Browse Products

Product Introduction

This 60000 Btu/h endpoint carries the largest compressor and brazed-plate condenser in the indoor series. It serves higher-load cleanroom DX air handlers where a stable condenser-water loop is available and outdoor heat-rejection equipment is undesirable.

Key Features

High indoor DX output

The largest compressor supports a sizeable remote air-handler coil or process evaporator.

Water-side heat rejection

The plate condenser moves the full refrigeration heat load into the building water system.

Fan-free equipment room

No outdoor condenser fan is required at the condensing-unit location, reducing air-discharge coordination.

Technical Parameters

Cooling Capacity	60000 Btu/h
Nominal Size	5-ton class
Refrigerant	R32
Condenser	Large brazed-plate water-cooled exchanger
Compressor	Largest series packaged compressor
Water-Side Interface	Condenser-water supply and return
Evaporator Interface	Remote cleanroom DX coil
Protection	Flow, pressure and compressor safety options
Installation	Indoor mechanical space
Customization	Condenser-water conditions, circuit accessories and controls can be configured for the intended application and operating environment.

Applications

Higher-load cleanroom DX air handlers, process cooling, controlled production areas and large indoor evaporator systems.

Solutions for Your Application

Outdoor condenser restrictions prevent using a five-ton air-cooled package.Use the water-cooled unit and verify the building loop can reject the full compressor heat.

A high-capacity plate condenser is sensitive to inadequate flow or fouling.Interlock compressor operation to proven water flow and maintain water quality with accessible filtration.

Available Options

Water regulating package, flow verification, receiver, liquid-line accessories, pressure monitoring, vibration isolation and supervisory contacts are available.
