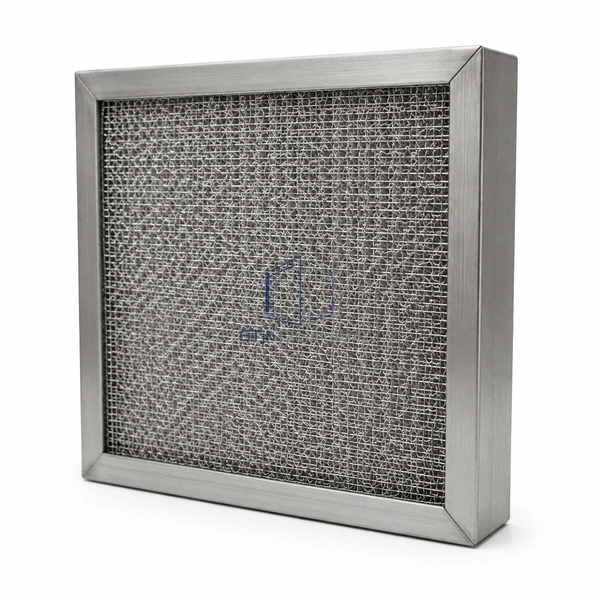

STJH-WASHABLE-STEEL-MESH-FILTER-SS50

Washable Steel Mesh Air Filter 50 mm Stainless Steel

An all-stainless two-inch filter for corrosive or elevated-temperature airflow requiring repeated wash cycles.

All-stainless frame and media
Up to 538 °C construction
Reusable two-inch format

Request a Quote Browse Products

Product Introduction

Both the frame and filter medium of this 50 mm panel are stainless steel, separating it from the galvanized general-duty model. It operates across the documented 450–550 fpm range, tolerates up to 100% relative humidity and can support temperatures as high as 538 °C when the complete selected construction is suitable. The filter is intended for harsh utility air, hot process support and frequent wash service.

Key Features

Corrosion-resistant material set

Stainless frame and screens are preferred where wash chemistry or airborne contaminants attack galvanized surfaces.

Elevated-temperature capability

The all-metal assembly avoids synthetic media limits in compatible hot-air applications.

Sanitary repeat cleaning

Durable screen layers tolerate regular washing when the method matches the selected stainless grade.

Technical Parameters

Panel Depth	50 mm
Frame Construction	Stainless steel
Media Construction	Stainless steel screen pack
Operating Air Velocity	450–550 fpm
Maximum Relative Humidity	100%
Maximum Temperature	538 °C for the applicable all-metal construction
Maintenance	Washable with water or compatible detergent
Environmental Duty	Corrosive, hot or frequent-wash air
Filter Role	Reusable coarse prefiltration
Customization	Available based on the intended application and operating environment.

Applications

Specified for hot-process ventilation, corrosive utility areas and clean manufacturing support systems that wash filters frequently. Material grade, gasket and mounting components must be selected for the actual temperature and chemical exposure rather than relying on the mesh alone.

Solutions for Your Application

Galvanized screens corrode under the site's cleaning chemicals or airborne contaminants.Use an all-stainless frame and media pack with a stainless grade compatible with the exposure.

Nonmetallic components limit a filter used in hot airflow.Specify an all-metal build and verify that every seal and retaining part matches the required temperature.

Available Options

Select stainless grade, face dimensions, support screens, handles and any temperature-compatible perimeter seal.

Planning a Washable Steel Mesh Air Filter 50 mm Stainless Steel specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
