STJH-WASHABLE-STEEL-MESH-FILTER-GALV50

Washable Steel Mesh Air Filter 50 mm Galvanized Steel

A robust two-inch galvanized screen filter for reusable coarse filtration in industrial support ventilation.

50 mm galvanized construction
450–550 fpm operating velocity
Washable at up to 100% RH

Request a Quote Browse Products

Product Introduction

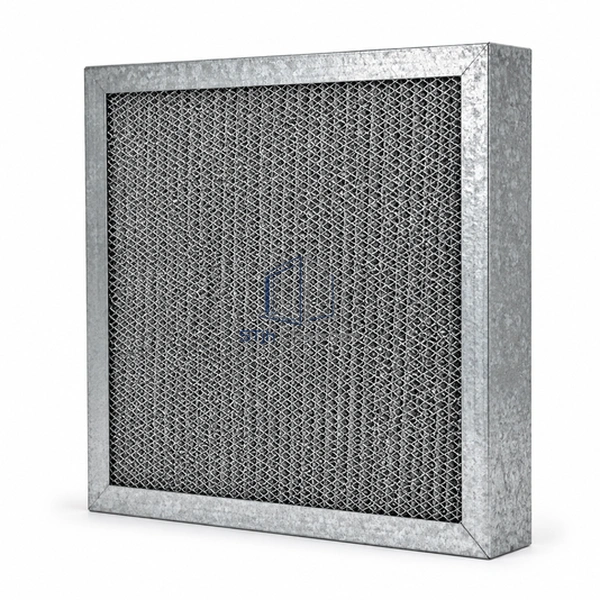

This 50 mm panel uses a galvanized steel frame and crimped galvanized screen medium for durable first-stage service. It is intended for 450–550 fpm operation and humidity up to 100%, with cleaning by water or suitable detergent. The economical galvanized construction suits general industrial and cleanroom support systems that do not require the higher corrosion or temperature capability of stainless steel.

Key Features

Impact-resistant screen pack

Crimped steel layers withstand routine handling better than a soft synthetic mat.

Economical metal choice

Galvanized construction provides a practical reusable panel for non-corrosive industrial air.

Detergent-cleanable surface

Accumulated lint and coarse deposits can be removed using an appropriate wash procedure.

Technical Parameters

Nominal Depth	50 mm
Frame Material	Galvanized steel
Filter Medium	Crimped galvanized steel screen
Operating Velocity	450–550 fpm
Relative Humidity	Up to 100%
Cleaning Method	Water or suitable detergent wash
Filter Format	Two-inch reusable panel
Particle Duty	Coarse dust and lint capture
Recommended Environment	Non-corrosive industrial ventilation
Customization	Available based on the intended application and operating environment.

Applications

Suitable for rugged prefiltration in industrial ventilation, cleanroom mechanical areas and process support AHUs exposed to lint, coarse dust or high relative humidity. It provides reusable service where galvanized steel is compatible with the airstream.

Solutions for Your Application

A lightweight filter is damaged during frequent removal and cleaning.The 50 mm galvanized frame and crimped screen pack provide a robust handling structure.

The airstream contains chemicals that may attack zinc coating.Review the contaminant chemistry and select the stainless model when galvanized steel is not compatible.

Available Options

Confirm face size, frame gauge, screen arrangement, handles and wash chemistry for the ventilation system.

Planning a Washable Steel Mesh Air Filter 50 mm Galvanized Steel specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
