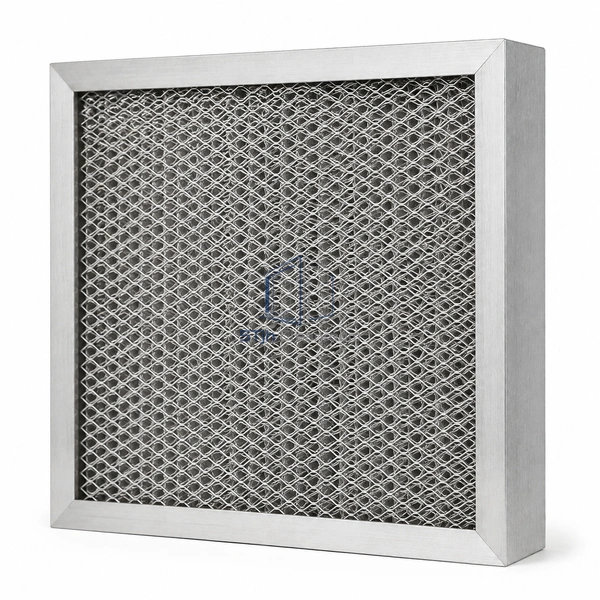

STJH-WASHABLE-ALUMINUM-MESH-FILTER-50

Washable Aluminum Mesh Filter 50 mm

A two-inch reusable aluminum filter with more mesh depth for routine humid industrial ventilation.

50 mm reusable depth
Deeper crimped aluminum mesh
All-metal moisture resistance

Request a Quote Browse Products

Product Introduction

The 50 mm version uses a deeper crimped aluminum mesh pack than the one-inch panel, increasing the available dirt-contact surface while preserving all-aluminum construction. It is washable, can be recoated and is intended for 300–600 fpm operation at temperatures up to 149 °C. This depth is a balanced choice for general permanent-filter tracks in cleanroom support AHUs.

Key Features

Additional mesh surface

The two-inch pack presents more layered metal area to the airstream than the 25 mm version.

Routine permanent-filter format

A 50 mm frame fits widely used two-inch filter sections without the weight and depth of the 100 mm model.

Repeat wash capability

The frame and medium tolerate scheduled washing when handled without crushing the crimped layers.

Technical Parameters

Filter Depth	50 mm
Frame Construction	Aluminum
Media Construction	Crimped layered aluminum mesh
Recommended Air Velocity	300–600 fpm
Temperature Limit	149 °C
Maintenance Cycle	Washable with optional recoating
Panel Type	Two-inch permanent metal filter
Operating Environment	Humid industrial or utility air
Primary Stage	Coarse intake filtration
Customization	Available based on the intended application and operating environment.

Applications

Used in humid industrial air handlers, cleanroom support ventilation, make-up-air intakes and washable equipment filters. It offers more reusable media depth than a 25 mm panel while remaining manageable for routine removal and cleaning.

Solutions for Your Application

The shallow metal filter has insufficient dirt-contact area for routine AHU service.The 50 mm crimped pack adds layered aluminum surface without moving to a four-inch cell.

Maintenance staff damage the mesh while using high-pressure cleaning.Use a controlled water or detergent wash and support the frame during rinsing and drying.

Available Options

Confirm panel face, airflow arrow, perimeter profile, lifting handle and compatible post-wash coating.

Planning a Washable Aluminum Mesh Filter 50 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
