STJH-WASHABLE-ALUMINUM-MESH-FILTER-25

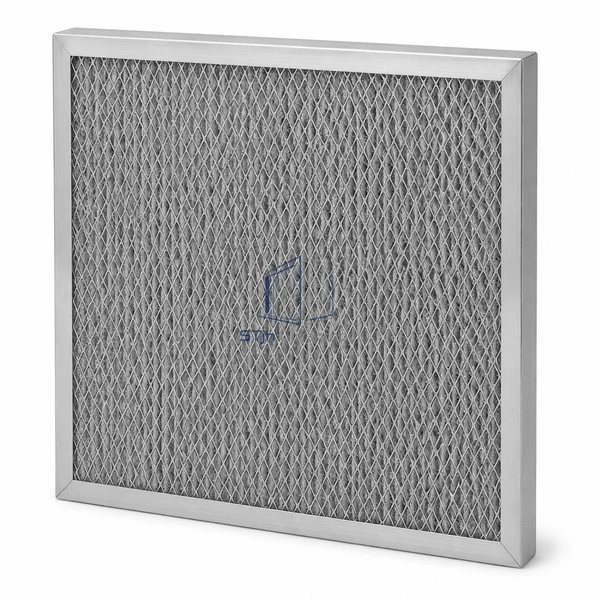

Washable Aluminum Mesh Filter 25 mm

A slim all-aluminum permanent filter for damp intake locations with only one inch of rack depth.

25 mm all-aluminum panel
300–600 fpm operating range
Washable and recoatable

Request a Quote Browse Products

Product Introduction

This 25 mm panel combines an aluminum frame with layered aluminum mesh to create a lightweight, washable first-stage filter. It is intended to operate across approximately 300–600 fpm and can be cleaned and recoated to restore dust adhesion. The one-inch profile is the shallowest aluminum option and is particularly useful where moisture rules out disposable board frames.

Key Features

One-inch rack fit

The slim perimeter installs where deeper permanent metal filters would obstruct access or equipment clearance.

Moisture-compatible materials

Aluminum frame and media avoid absorbent components in humid first-stage locations.

Renewable dust adhesion

After washing, a compatible filter coating can be reapplied where the operating procedure uses tackified metal media.

Technical Parameters

Nominal Depth	25 mm
Frame Material	Aluminum
Filter Media	Layered aluminum mesh
Operating Velocity	300–600 fpm
Maximum Temperature	149 °C
Service Method	Washable and recoatable
Filter Category	Permanent coarse metal filter
Humidity Suitability	Moisture-prone ventilation duty
Rack Class	One-inch panel track
Customization	Available based on the intended application and operating environment.

Applications

Suitable for shallow commercial intakes, utility ventilation and cleanroom support equipment exposed to damp air. It provides reusable coarse screening where a lightweight one-inch panel is easier to remove and wash than a deeper metal cell.

Solutions for Your Application

Only a one-inch filter track is available at a moisture-prone intake.The 25 mm all-aluminum construction provides a washable metal option within the restricted depth.

Cleaning removes the adhesive coating that supports particle capture.Wash the mesh thoroughly, dry it and apply the specified compatible coating before returning it to service.

Available Options

Specify face dimensions, frame edge, handle or drain orientation and whether the maintenance program uses recoating.

Planning a Washable Aluminum Mesh Filter 25 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
