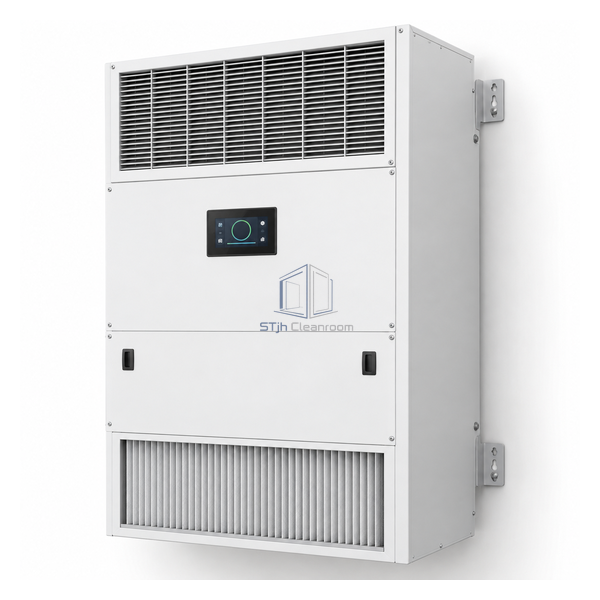

STjh tall 1200 cubic-metre wall purifier with bottom F7 intake, H14 outlet and touchscreen

STJH-WALL-MOUNTED-AIR-PURIFIER-1200M3H-H14

Wall-Mounted Cleanroom Air Purifier 1200 m³/h H14

A tall wall-mounted purifier with BLDC airflow control and an optional H14 final-filter configuration.

400-1200 m3/h range
H13 standard or H14 option
Touchscreen filter monitoring

Request a Quote Browse Products

Product Introduction

This 560 x 425 x 950 mm wall unit draws room air from below and returns it upward through an F7 prefilter and H13 or H14 final filter. A backward-curved BLDC fan provides up to 1200 m3/h with a touchscreen interface and filter-loading indication. It offers three times the nominal airflow of the low-profile 400 CFM wall model while using a vertical cabinet.

Key Features

Vertical circulation path

Bottom intake and top discharge promote room mixing while keeping the wall footprint narrow.

Efficient fan control

The backward-curved BLDC fan supports adjustable high-volume operation from a modest electrical input.

Visible service status

The touchscreen provides local operating control and a filter-loading indication for planned maintenance.

Technical Parameters

External Dimensions	560 W x 425 D x 950 H mm
Airflow Range	400-1200 m3/h with H13 filter
Prefilter	F7
Final Filter	H13 standard or H14 optional
Fan	Backward-curved BLDC
Power Supply	230 V single phase, 50 Hz
Typical Power	0.13 kW
Sound Pressure	37 dBA at 230 m3/h; 50 dBA at 600 m3/h; 59 dBA at 1200 m3/h
Control	Touchscreen with filter-loading indication
Customization	Available based on the intended application and operating environment.

Applications

Recommended for cleanroom support laboratories, medical preparation areas and high-turnover change rooms requiring substantial wall-mounted recirculation. Select H14 only where the corresponding pressure and airflow duty have been accounted for.

Solutions for Your Application

A high-output purifier consumes too much usable floor area.Use the vertical wall cabinet and preserve only the required bottom-intake and top-discharge clearances.

Filter loading may go unnoticed until room airflow declines.Use the touchscreen indication and compare operating airflow after each service interval.

Available Options

Choose H13 or H14 final filtration, control functions, wall brackets and monitoring outputs. Confirm the sound and airflow setpoint for the occupied room.

Planning a Wall-Mounted Cleanroom Air Purifier 1200 m³/h H14 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
