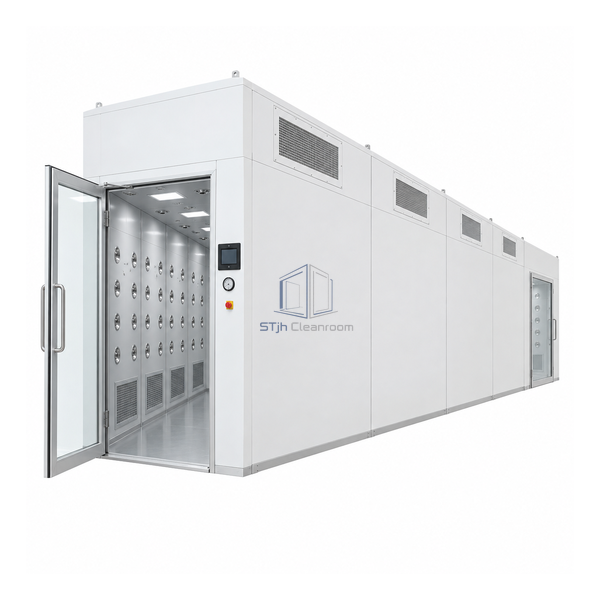

Cleanroom Air Shower Tunnel Four-Section Walk-Through

The longest frozen tunnel, using four filtered blower modules for high-volume continuous personnel flow.

5487 mm tunnel depth
7600 CFM average airflow
Four filtered blower sections

Request a Quote Browse Products

Product Introduction

Four 54 in modules create a 5487 mm deep straight-through tunnel with four separate HEPA and 5 hp blower systems. The published average airflow reaches 7600 CFM, with approximately 7800 FPM nozzle velocity across the sectional jet field. This is the highest-capacity tunnel in the batch, intended for continuous flow or large groups rather than a compact vestibule.

Key Features

Longest active route

Four modules provide the greatest travel exposure and group holding length in this frozen family.

High-volume sectional airflow

Four 5 hp systems collectively deliver the cited 7600 CFM average duty.

Industrial service construction

Painted steel walls, inspection panels, standard-size filters and prefilters support demanding daily use.

Technical Parameters

Outside Dimensions	1264 W x 5487 D x 2946 H mm
Number of Sections	4
Section Size	54 in depth each
Average System Airflow	7600 CFM
Average Nozzle Velocity	7800 FPM
Fan Motors	4 x 5 hp, three phase
HEPA Filters	4
Cabinet Material	16-gauge painted steel; stainless optional
Control System	Touchscreen microprocessor, magnetic interlocks and LED lighting
Customization	Available based on the intended application and operating environment.

Applications

For high-volume shift changes, long continuous-flow entrances and large-batch garment decontamination in manufacturing, pharmaceutical and research facilities. Operating speed should maintain adequate residence through all four active modules.

Solutions for Your Application

Peak personnel traffic overwhelms a short batch air shower.Use the four-section route and 7600 CFM system to process a continuous controlled flow.

A high-capacity tunnel concentrates maintenance in one inaccessible assembly.Retain independent access to each blower, HEPA filter and prefilter section along the cabinet.

Available Options

Configure stainless construction, alternate tunnel turns, accessibility provisions, door style, section controls and filter monitoring. Confirm structural, electrical and egress space for the 5.5 m body.

Planning a Cleanroom Air Shower Tunnel Four-Section Walk-Through specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
