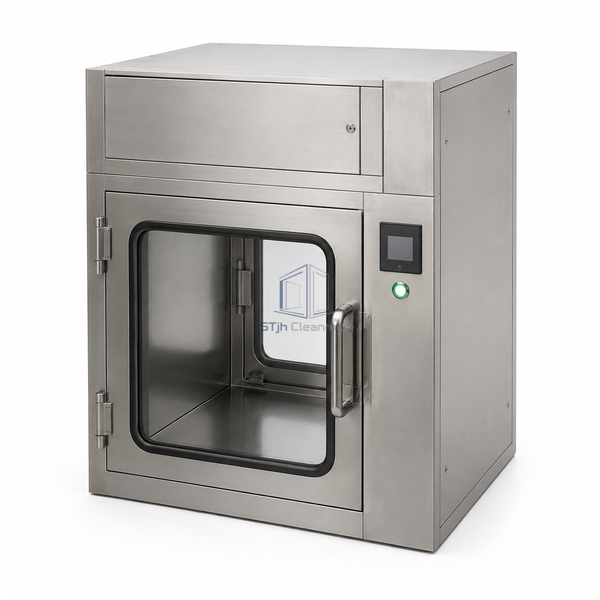

STjh compact VHP transfer chamber with a sealed glass door and green status lamp on white

STJH-VHP-TRANSFER-CHAMBER-COMPACT

VHP Transfer Chamber Compact Model

A pitless wall-to-wall VHP transfer chamber for surface-decontaminating small tools, consumables and animal-facility accessories.

Compact pass-box format
Integrated VHP generator
Catalytic aeration

Request a Quote Browse Products

Product Introduction

This compact pass-box format combines interlocked doors with an embedded hydrogen-peroxide generator and dehumidifier. HEPA-managed circulation and catalytic aeration keep the treatment and removal functions within the transfer unit, making it suitable where a trolley-scale chamber is unnecessary.

Key Features

Pitless installation

The wall-to-wall format avoids a floor pit and suits transfers of hand-carried loads.

Interlocked separation

Two interlocked doors prevent a direct open path between the adjoining areas.

Integrated cycle hardware

VHP generation, dehumidification, HEPA circulation and catalytic removal are contained in one transfer platform.

Technical Parameters

Chamber Format	Compact wall-mounted pass box
Door Arrangement	Interlocked double doors
Biodecontamination Method	Integrated vaporized H2O2
Humidity Control	Embedded dehumidifier
Air Filtration	HEPA-filtered circulation
Aeration	Catalytic H2O2 removal
Installation	Pitless wall-to-wall
Load Type	Small tools, consumables and cage accessories
Area Interface	BSL-3 or controlled clean-area transfer
Customization	Internal size, wall interface and load supports can be adapted to the intended transfer items and room layout.

Applications

Entry of small laboratory tools, packaged consumables, cage accessories and maintenance items into BSL-3 suites or clean production areas.

Solutions for Your Application

A trolley chamber is too large for hand-carried consumables.Use the compact pass-box format and size internal supports around the regular load set.

Opening both room sides could compromise separation.Use the interlocked doors and release the receiving-side door only after the programmed treatment and aeration sequence.

Available Options

Chamber dimensions, shelving, wall trim and cycle-monitoring interfaces can be selected for the load and facility boundary.

Planning a VHP Transfer Chamber Compact Model specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
