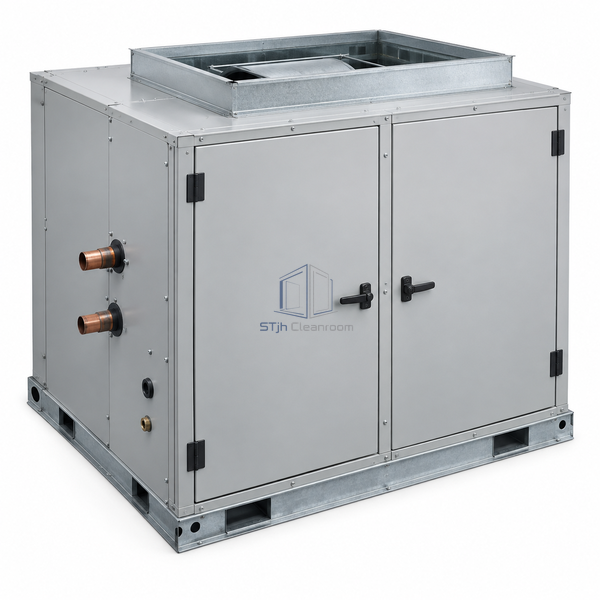

STjh 5000 CFM vertical air handling unit with a broad coil face and enlarged upper fan deck on white.

STJH-VERTICAL-AIR-HANDLING-UNIT-5000CFM

Vertical Air Handling Unit 5000 CFM

A medium 5000 CFM vertical AHU with a 63 x 32.1 inch footprint and expanded coil and fan face for controlled corridors and support zones.

5000 CFM nominal airflow
63 x 32.1 inch footprint
Enlarged coil and fan deck

Request a Quote Browse Products

Product Introduction

This medium vertical unit expands cabinet width to 63 inches while limiting length to 32.1 inches. The 5000 CFM face size provides more room for coil surface and fan duty than the compact model, yet preserves an upright configuration for plant rooms with constrained depth.

Key Features

Wide, shallow footprint

The 63 inch face distributes medium airflow while the 32.1 inch depth limits encroachment into the service aisle.

Larger thermal surface

The increased coil face accommodates medium cooling or heating duty at practical air velocity.

Upright service sequence

Filters, coil and fan are stacked in a vertical casing for access from one planned side.

Technical Parameters

Nominal Airflow	5000 CFM
Cabinet Width	63 in
Cabinet Length	32.1 in
Cabinet Height	63.98-69.90 in depending on fan selection
Arrangement	Vertical stacked sections
Coil Selection	Water, DX or steam options
Casing	Single- or double-wall construction
Fan Deck	Medium-capacity fan arrangement
Filter Access	Flat or angled bank with service panel
Customization	Cabinet wall, coil type and fan duty can be configured for the intended application and operating environment.

Applications

Pharmaceutical support rooms, controlled corridors, medium laboratory zones and upright mechanical-room air-treatment systems.

Solutions for Your Application

The system needs 5000 CFM, but the equipment room has little cabinet depth.Use the 32.1 inch-deep vertical configuration and allocate width along the wall instead.

Coil face velocity would be high in a compact 1500 CFM cabinet.The 63 inch-wide face gives the larger coil and filter bank appropriate area for the medium duty.

Available Options

Water or DX coils, casing wall type, filter section, fan drive, drain-pan material, access orientation and controls are available.

Planning a Vertical Air Handling Unit 5000 CFM specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
