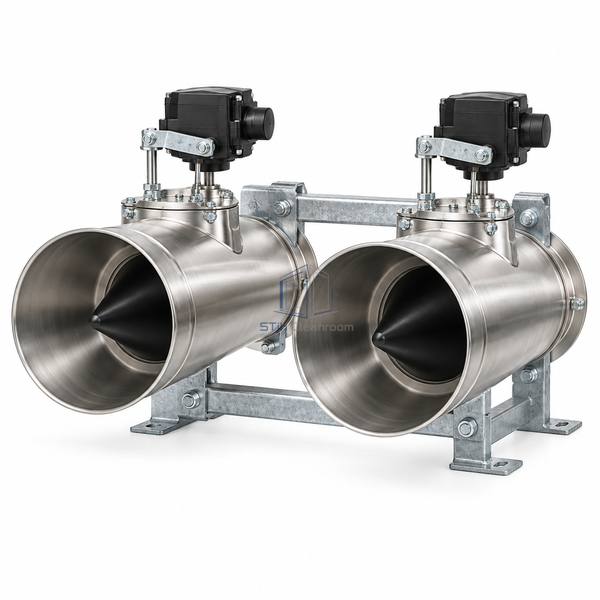

Venturi Airflow Control Valve Dual 12-Inch Assembly

Parallel Venturi bodies for high-volume critical air control.

Two flow paths expand capacity within a modular assembly.
Shared support keeps the paired valve bodies aligned.

Request a Quote Browse Products

Product Introduction

Two 12-inch flow passages operate as one assembly, dividing a large branch duty across separate compensating cones. The side-by-side configuration is suited to high-volume systems where a single throat would restrict the required operating range.

Key Features

Two flow paths expand capacity within a modular assembly.
Shared support keeps the paired valve bodies aligned.

Technical Parameters

Body Count	Two
Nominal Passage Size	2 × 12 in
Body Material	316 stainless steel
Combined Airflow Range	180–3000 cfm
Medium-Pressure Accuracy	±5% of command at 150–750 Pa
Pressure-Change Response	Less than 1 s
Power Supply	24 VAC, 50/60 Hz
Ambient Duty	0–50 °C
Regulation	Paired mechanically compensated Venturi cones
Customization	Assembly and controls can be adapted to the intended operating environment.

Applications

Large controlled-environment exhaust systems
Combined supply for substantial cleanroom suites

Solutions for Your Application

One round valve cannot cover the required full-flow duty.

Parallel passages provide the documented combined flow range.

Multiple separate valves complicate physical layout.

A paired assembly groups both bodies on a coordinated mounting arrangement.

Available Options

Common transition pieces
Building-management controller integration

Planning a Venturi Airflow Control Valve Dual 12-Inch Assembly specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
