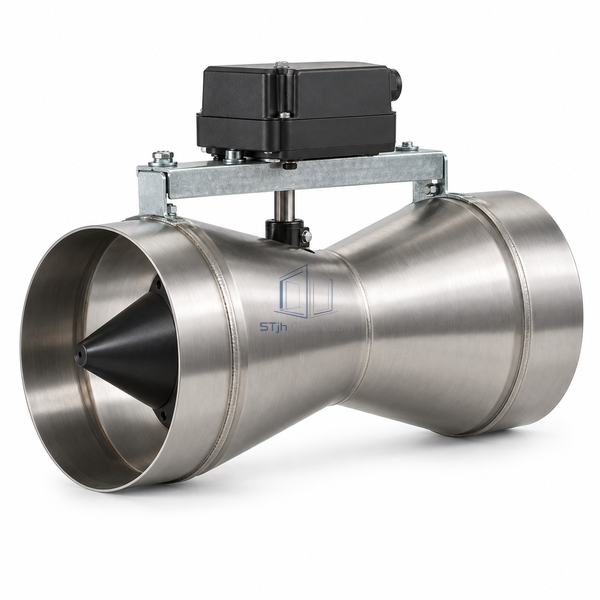

Venturi Airflow Control Valve 10-Inch Single

Single-body Venturi regulation for medium critical ventilation duties.

Mechanical compensation limits flow disturbance from duct-pressure changes.
Single body simplifies connection to one round branch.

Request a Quote Browse Products

Product Introduction

A tapered stainless passage surrounds a translating cone and spring mechanism. The cone compensates mechanically for pressure changes while the actuator selects the requested volume, separating rapid pressure response from room-level demand control.

Key Features

Mechanical compensation limits flow disturbance from duct-pressure changes.
Single body simplifies connection to one round branch.

Technical Parameters

Nominal Size	10 in
Body Arrangement	Single Venturi
Shell Material	316 stainless steel
Airflow Range	50–1000 cfm
Command Accuracy	±5% at 150–750 Pa, medium-pressure configuration
Static-Pressure Response	Less than 1 s
Supply	24 VAC, 50/60 Hz
Ambient Temperature	0–50 °C
Positioning	Electronic actuator with mechanical pressure compensation
Customization	Available for the intended supply or exhaust operating environment.

Applications

Laboratory room supply control
Medium critical exhaust branches

Solutions for Your Application

Pressure fluctuations can upset room airflow offsets.

The spring-loaded cone responds to pressure independently of the electronic demand signal.

A single equipment branch needs substantial turndown.

The selected single valve spans low standby flow through its medium-flow operating range.

Available Options

Horizontal or vertical orientation
Remote electronics

Planning a Venturi Airflow Control Valve 10-Inch Single specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
