STJH-V-BANK-MEDIUM-FILTER-MERV15

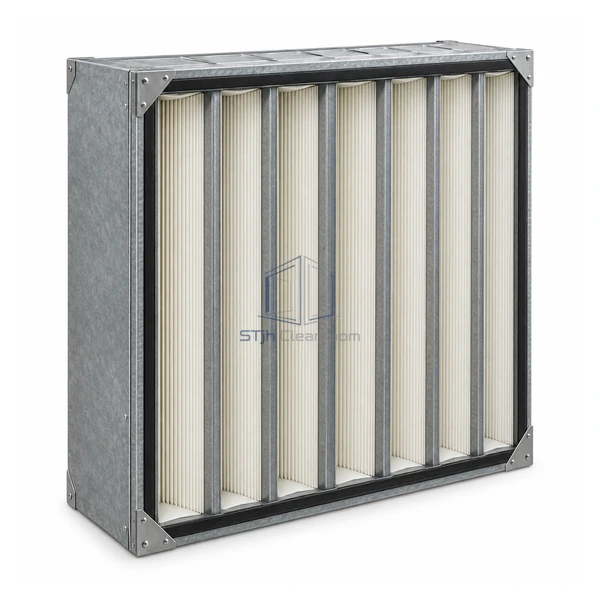

V-Bank Medium-Efficiency Filter MERV 15

The highest-efficiency V-bank option in the series, using fully sealed packs for critical second-stage service.

MERV 15 / 15A grade
Fully sealed V-bank packs
Critical high-flow duty

Request a Quote Browse Products

Product Introduction

Rated MERV 15 with a MERV 15A configuration available, this model uses sealed dual-density glass-fiber packs in a nominal 292 mm V-bank housing. It combines the finest grade in the family with the strength of a 25 in. w.g. burst-pressure class. The unit is intended for critical clean-process systems that need high intermediate efficiency and substantial airflow through each module.

Key Features

Highest V-bank grade

MERV 15 media delivers the strongest fine-particle control among the three medium-efficiency V-bank models.

Sealed pack perimeter

Fully sealed media elements limit internal bypass paths through the rigid cassette.

High-strength compact form

The burst-rated housing supports demanding airflow while retaining standard V-bank depth.

Technical Parameters

Nominal Depth	292 mm class
Efficiency Rating	MERV 15 / MERV 15A
Media Composition	Dual-density glass fiber
Bank Arrangement	Sealed multi-panel V configuration
Pack Sealing	Fully sealed within the cassette
Burst Pressure Class	25 in. w.g.
Cassette Style	Rigid recessed-pack construction
Airflow Application	High-volume clean-process supply air
Filter Position	Demanding second stage before final filtration
Customization	Available based on the intended application and operating environment.

Applications

Designed for critical electronics, life-science and precision-process AHUs that require a high-grade intermediate filter at elevated airflow. It can be placed upstream of HEPA terminals where controlling fine particle loading is especially important.

Solutions for Your Application

Internal bypass through an incompletely sealed compact pack undermines high efficiency.The media packs are fully sealed into the V-bank cassette, which is then gasketed to the holding frame.

A high-grade filter must survive strong transient pressure.Match the 25 in. w.g. burst-class filter with an equally secure rack and clamping arrangement.

Available Options

Choose MERV 15 or 15A configuration, face format, header, gasket location and compatible holding-frame compression.

Planning a V-Bank Medium-Efficiency Filter MERV 15 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
