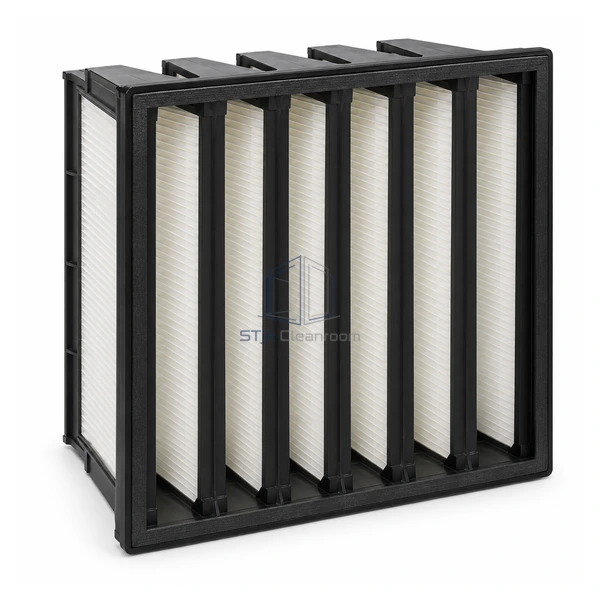

STJH-V-BANK-MEDIUM-FILTER-MERV14

V-Bank Medium-Efficiency Filter MERV 14

A high-flow MERV 14 V-bank filter that increases fine capture while retaining a strong compact geometry.

MERV 14 / 14A option
Recessed V-bank packs
25 in. w.g. burst class

Request a Quote Browse Products

Product Introduction

This nominal 292 mm V-bank model advances to MERV 14, with a MERV 14A option where the project calls for that performance category. Dual-density glass-fiber mini-pleat packs are recessed and sealed within the rigid housing. The format provides the increased media area needed for hospital and clean-manufacturing airflows without resorting to long fabric pockets.

Key Features

Enhanced fine-particle capture

The MERV 14 medium offers a stronger barrier for clean supply systems than the MERV 11 version.

Compact high-flow media area

Angled pleat packs multiply filtration area inside a standard-depth cassette.

Robust bank service

A high burst-pressure class supports demanding AHU conditions when the filter is correctly retained.

Technical Parameters

Nominal Depth	292 mm class
Efficiency Grade	MERV 14, with MERV 14A option
Filter Medium	Dual-density glass fiber
Media Layout	Multi-panel V-bank
Pack Position	Recessed within rigid frame
Burst Pressure Class	25 in. w.g.
Face Configurations	Standard AHU module formats
Operating Duty	High-flow supply and recirculation air
Typical Stage	Fine intermediate filtration
Customization	Available based on the intended application and operating environment.

Applications

Suitable for hospital air handlers, laboratories and clean-manufacturing HVAC systems that need MERV 14 performance at substantial airflow. The rigid cassette is useful where fabric pocket movement or limited downstream clearance is undesirable.

Solutions for Your Application

Fine-particle requirements rise, but the AHU cannot accept long pocket filters.The 292 mm V-bank contains increased media area within a rigid compact depth.

Filter integrity may be challenged by abnormal pressure events.Use the high burst-pressure construction with a holding frame rated for the same duty.

Available Options

Specify MERV 14 or 14A performance, face size, gasket side and header format for the receiving bank.
