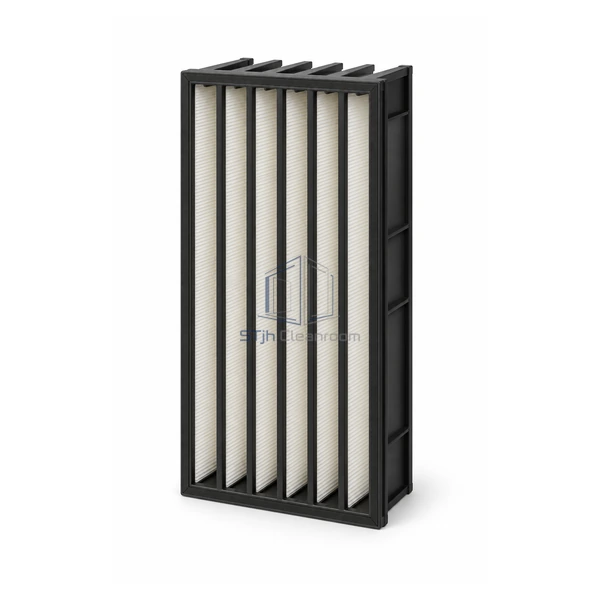

STjh 305 x 610 mm H14 V-bank HEPA filter main product view

STJH-V-BANK-HEPA-H14-305X610

V-Bank HEPA Filter 305 × 610 mm H14

A tall half-width H14 V-bank rated 2000 m3/h for narrow, high-volume final-filter sections.

Half-width tall module
2000 m3/h at 320 Pa
H14 MPPS efficiency

Request a Quote Browse Products

Product Introduction

The 305 x 610 x 292 mm configuration doubles nominal flow to 2000 m3/h while keeping the same 320 Pa initial pressure drop as the square model. Its tall narrow face is useful when AHU width is constrained but vertical rack height is available. V-shaped microglass mini-pleat packs distribute flow through an enlarged internal media area.

Key Features

Narrow rack utilization

The 305 mm width lets designers place high-capacity filtration in slim AHU columns.

Twofold airflow step

Nominal volume rises to 2000 m3/h compared with the square member of this family.

Uniform bank loading

The V-shaped mini-pleat arrangement spreads air over multiple media surfaces behind the tall face.

Technical Parameters

Filter Size	305 x 610 x 292 mm
Efficiency	H14 / at least 99.995% at MPPS
Rated Airflow	2000 m3/h
Starting Pressure Drop	320 Pa
Filter Media	Microglass mini-pleat
Bank Geometry	Multiple V-shaped packs
Moisture Tolerance	Up to 100% relative humidity
Rack Format	Tall half-width module
Access Requirement	292 mm depth plus withdrawal space
Customization	Available based on the intended application and operating environment.

Applications

Appropriate for pharmaceutical, healthcare and medical-equipment AHUs with narrow vertical filter banks and a 2000 m3/h design point. Parallel modules can be staged across the rack, but airflow balancing is needed so one column does not load faster than the others.

Solutions for Your Application

A full-width filter cannot pass through the available AHU access door.The 305 mm-wide module preserves high flow while reducing individual element width for handling.

Tall parallel filters receive unequal airflow and reach different pressure drops.Use a straight approach section and verify airflow distribution across each 305 x 610 mm face after installation.

Available Options

Define gasket arrangement, grips, airflow direction, bank quantity and rack spacing around the 305 x 610 mm face.
