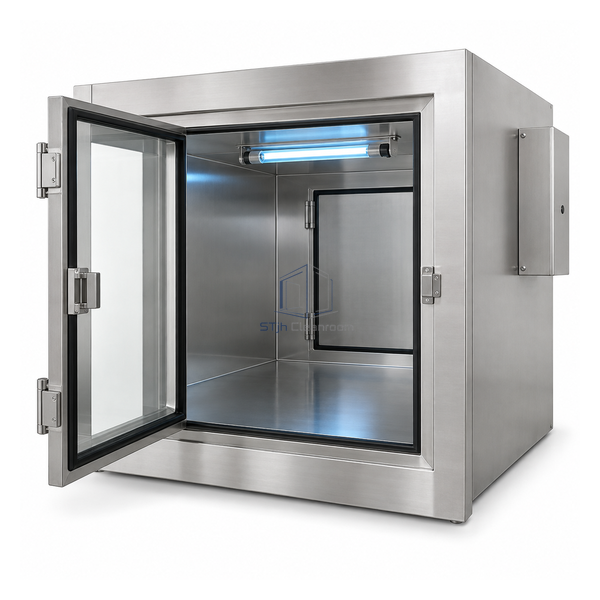

STjh large 700 mm static 304 stainless UV-C pass box with oversized interlocked door and reinforced lamp chamber

STJH-UV-C-MATERIAL-PASS-BOX-700-30W

UV-C Material Treatment Pass Box 700 mm 30 W

The largest static UV-C chamber in the series for bulky packaged materials within a 700 mm load cube.

700 mm cubic chamber
860 mm wide external cabinet
Static UV-C treatment format

Request a Quote Browse Products

Product Introduction

This large model provides a 700 x 700 x 700 mm usable chamber inside an 860 x 770 x 780 mm outer enclosure. It uses one 30 W UV lamp, electronic door interlocking and a 304 stainless work zone. Because the chamber is static and has no HEPA air circuit, it is appropriate when the transfer plan calls for closed-door UV-C exposure rather than removal of airborne or loose particulate contamination.

Key Features

Bulky package clearance

The large cube accommodates grouped cartons and oversize containers that cannot enter the two smaller models.

No filter service burden

Static treatment avoids fan, prefilter and HEPA maintenance where those systems are outside the process requirement.

Protected boundary control

The electronic interlock prevents simultaneous door opening across the cleanroom wall.

Technical Parameters

External Dimensions	860 W x 770 D x 780 H mm
Internal Chamber	700 x 700 x 700 mm
UV Lamp	1 x 30 W
Chamber Material	304 stainless steel
Door Interlock	Electronic
Air System	Static chamber without HEPA filter
Treatment Mode	Timed UV-C surface exposure
Load Format	Bulky packaged materials
Installation	Through-wall transfer opening
Customization	Available based on the intended application and operating environment.

Applications

For larger material containers and grouped packages moving into controlled pharmaceutical, laboratory or assembly areas. The 700 mm capacity should not be used as permission to densely fill the chamber; direct lamp exposure and approved spacing remain necessary.

Solutions for Your Application

Bulky containers cannot pass through the smaller UV chamber without repacking.Select the 700 mm model and verify the loaded outer dimensions before fixing the wall opening.

A densely packed large chamber leaves critical faces outside direct UV line of sight.Use a documented loading fixture or spacing rule that prevents packages from shielding the required surfaces.

Available Options

Specify shelf or rack hardware, door handing, timer, lamp-health indication and chamber finish. Treatment time and acceptable load geometry must be established by process validation.

Planning a UV-C Material Treatment Pass Box 700 mm 30 W specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
