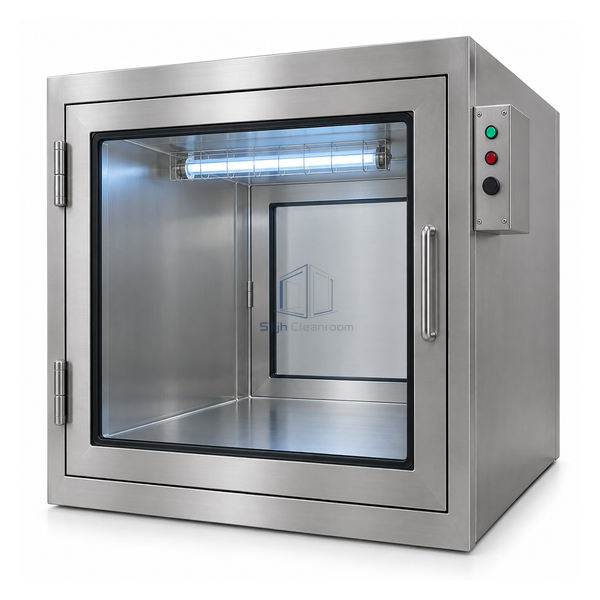

STjh medium 600 mm static 304 stainless UV-C pass box with broad glass door and protected 30 W chamber lamp

STJH-UV-C-MATERIAL-PASS-BOX-600-30W

UV-C Material Treatment Pass Box 600 mm 30 W

A medium static UV-C chamber for routine totes and prepared component batches up to a 600 mm cube.

600 mm cubic load space
760 x 670 x 680 mm cabinet
Electronic interlocked UV cycle

Request a Quote Browse Products

Product Introduction

The 600 mm model expands useful chamber volume to 600 x 600 x 600 mm while retaining the single 30 W UV lamp and static operating principle. Its 760 x 670 x 680 mm external envelope suits medium cleanroom transfer openings. The 304 stainless interior and electronic interlock support controlled loading and timed exposure without the filter changes associated with an air-purged pass box.

Key Features

Routine tote capacity

The medium chamber accepts prepared component bins that exceed the compact model but do not need the 700 mm opening.

Consistent family controls

The same 30 W lamp format simplifies operation and spares across installations using more than one chamber size.

Cleanable work zone

304 stainless internal surfaces provide a practical wipe-down finish around the transfer load.

Technical Parameters

External Dimensions	760 W x 670 D x 680 H mm
Internal Chamber	600 x 600 x 600 mm
UV Lamp	1 x 30 W
Chamber Material	304 stainless steel
Door Interlock	Electronic
Air System	Static chamber without HEPA filter
Treatment Mode	Timed UV-C surface exposure
Load Format	Medium totes and component batches
Installation	Through-wall transfer opening
Customization	Available based on the intended application and operating environment.

Applications

For routine material movement between laboratory, pharmaceutical support and controlled production rooms where medium totes require a timed UV-C step. Establish the maximum load height and spacing so the lamp has a direct path to the surfaces identified in the procedure.

Solutions for Your Application

The 500 mm model cannot accept the facility's standard component tote.Use the 600 mm cube after checking handle, lid and gloved-hand clearance around the loaded container.

A larger load creates more self-shadowing during UV exposure.Limit stacking and use a validated orientation that exposes the required package faces to the lamp.

Available Options

Choose shelf configuration, door direction, lamp-status alarm, timer range and viewing-panel design. Confirm UV compatibility for plastics, labels and seals included in the transfer load.

Planning a UV-C Material Treatment Pass Box 600 mm 30 W specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
