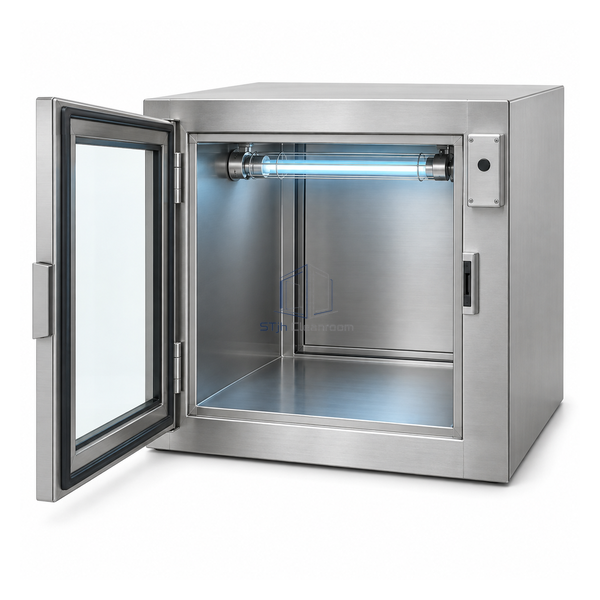

STjh compact 500 mm static 304 stainless UV-C pass box with open interlocked glass door and guarded 30 W lamp

STJH-UV-C-MATERIAL-PASS-BOX-500-30W

UV-C Material Treatment Pass Box 500 mm 30 W

A compact static UV-C transfer chamber for small sealed packs, tools and laboratory accessories.

500 mm cubic chamber
One 30 W UV lamp
Static non-HEPA configuration

Request a Quote Browse Products

Product Introduction

The 500 mm model is the smallest chamber in this static UV-C series. Its 500 x 500 x 500 mm 304 stainless work zone fits small transfer loads, while the outer cabinet measures 660 x 570 x 580 mm. One 30 W UV lamp operates with electronically interlocked doors; there is no HEPA airflow system, so the unit is selected for timed surface exposure rather than particle purging.

Key Features

Compact wall opening

The smallest chamber limits occupied wall area in laboratories and small preparation rooms.

Simple static treatment

The absence of a fan and filter section reduces mechanical complexity where airflow cleaning is not required.

Door-protected exposure

Electronic interlocking keeps the transfer boundary closed while the UV timer is active.

Technical Parameters

External Dimensions	660 W x 570 D x 580 H mm
Internal Chamber	500 x 500 x 500 mm
UV Lamp	1 x 30 W
Chamber Material	304 stainless steel
Door Interlock	Electronic
Air System	Static chamber without HEPA filter
Treatment Mode	Timed UV-C surface exposure
Load Format	Small sealed packs and tools
Installation	Through-wall transfer opening
Customization	Available based on the intended application and operating environment.

Applications

For laboratories, clean preparation rooms and controlled assembly areas transferring small sealed packages or tools. Exposure time and load positioning must be validated because UV-C treats directly illuminated surfaces and does not clean shadowed or internal package areas.

Solutions for Your Application

A fan-assisted pass box occupies too much space for small items and adds unnecessary maintenance.Use the compact static chamber when the approved process requires UV exposure rather than HEPA air flushing.

Operators may assume every surface receives the same UV dose.Define load orientation, maximum stacking and exposure time using site-specific dose verification.

Available Options

Select door handing, timer interface, lamp-status indication, viewing window and shelf arrangement. UV dose verification and lamp replacement intervals should follow the site's validated process.

Planning a UV-C Material Treatment Pass Box 500 mm 30 W specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
