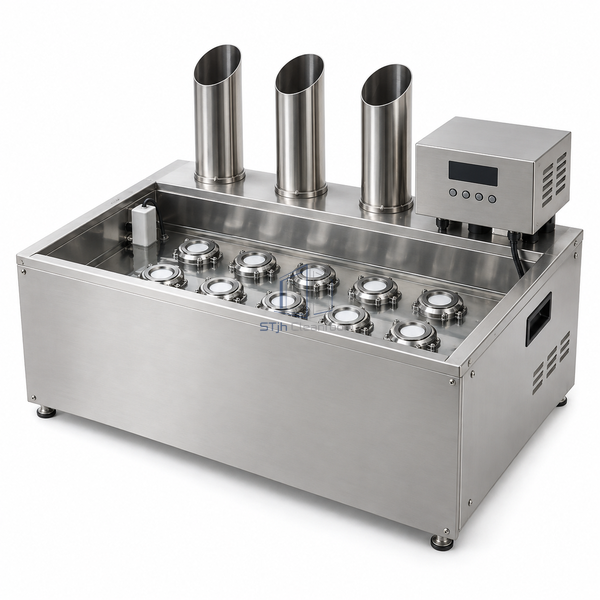

STjh 9 kg/h ultrasonic humidifier with a larger transducer array and broad stainless reservoir on white.

STJH-ULTRASONIC-HUMIDIFIER-9KGH

Ultrasonic Humidifier 9 kg/h

A medium transducer-bank humidifier providing triple the output of the compact model for controlled production spaces.

9 kg/h mist output
650 W transducer bank
Approximately 42 kg operating weight

Request a Quote Browse Products

Product Introduction

This 9 kg/h model increases transducer capacity and electrical input to 650 W while retaining a medium cabinet format. Its approximately 42 kg operating weight reflects the larger water and hardware inventory needed for triple the output of the 3 kg/h unit. It serves medium clean manufacturing or storage zones where purified water and an adequate evaporation path are available.

Key Features

Medium humidity capacity

The larger transducer count supports full room or AHU-zone duty rather than a small local area.

Energy-efficient atomization

Electrical input remains far below the energy required to boil the same water mass into steam.

Integrated water section

The reservoir and controls are sized around sustained 9 kg/h operation.

Technical Parameters

Mist Output	9 kg/h
Power Input	650 W
Housing	Medium
Operating Weight	Approximately 42 kg
Atomization	Ultrasonic transducer bank
Feed Water	Purified water
Control	Modulating
Hygiene	Automatic drain and cleaning routine by configuration
Primary Duty	Medium clean manufacturing zone
Customization	Available based on the intended application and operating environment.

Applications

For medium clean manufacturing rooms, controlled storage and air systems needing energy-efficient humidification from purified water.

Solutions for Your Application

The 42 kg operating unit is mounted on a light service panel.Provide a level support rated for the filled operating weight and connected piping loads.

Microbial growth develops in retained water during shutdown.Use automated drain and hygiene routines, maintain purified water and avoid stagnant dead legs.

Available Options

Specify water treatment, mounting, voltage, output steps, distribution, reservoir hygiene, overflow, drain and humidity high limit.

Planning a Ultrasonic Humidifier 9 kg/h specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
