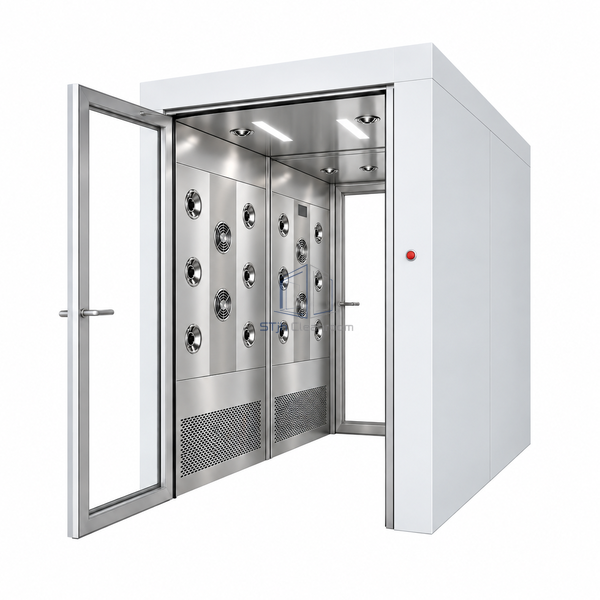

STjh 2000 mm deep floorless air shower showing two sequential wall nozzle banks, four ceiling jets and an open glazed entrance door

STJH-TWO-PERSON-AIR-SHOWER-770X2000

Two-Person Cleanroom Air Shower 770 × 2000 mm

A two-section, 36-nozzle chamber providing a longer cleaning path for one or two people.

2000 mm clear depth
Two jet sections
36 total nozzles

Request a Quote Browse Products

Product Introduction

The 2000 mm deep version doubles the jet sections of the compact two-person chamber. Its 770 x 2000 x 1935 mm floorless passage contains 36 nozzles distributed across four side panels and two ceiling zones. The added length increases exposure and separation between doors while preserving the same 1100 mm external width.

Key Features

Extended cleaning path

A two-metre passage places personnel within active jets for longer than the 1500 mm single-section chamber.

Dense longitudinal coverage

Four side-wall banks and two overhead pairs spread airflow along the travel direction.

Narrow multi-user format

The 770 mm clear width supports single-file one-to-two-person circulation without a broad doorway.

Technical Parameters

Cabinet Size	1100 x 2000 x 2100 mm
Passage Size	770 x 2000 x 1935 mm
User Capacity	1-2 people
Nozzles	36
Wall Nozzles	32 across four side panels
Ceiling Nozzles	4 across two zones
Number of Sections	2
Base	No integral floor
Electrical Supply	AC 200 V, three phase, 50/60 Hz
Customization	Available based on the intended application and operating environment.

Applications

For deeper personnel transitions, gowning entries and production suites where one or two operators require a longer shower path. The 2000 mm chamber also supports sequential standing positions without increasing opening width.

Solutions for Your Application

A short shower cycle provides insufficient longitudinal jet coverage.Use two 1000 mm class sections and 36 nozzles along the extended passage.

A wide two-person chamber cannot fit the wall opening.Retain the 770 mm single-file path and gain capacity through additional depth.

Available Options

Choose controls, cycle sequencing, doors, floor-interface seal, lighting and panel finish. The longer cabinet can be divided for shipping and site assembly if required.

Planning a Two-Person Cleanroom Air Shower 770 × 2000 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
