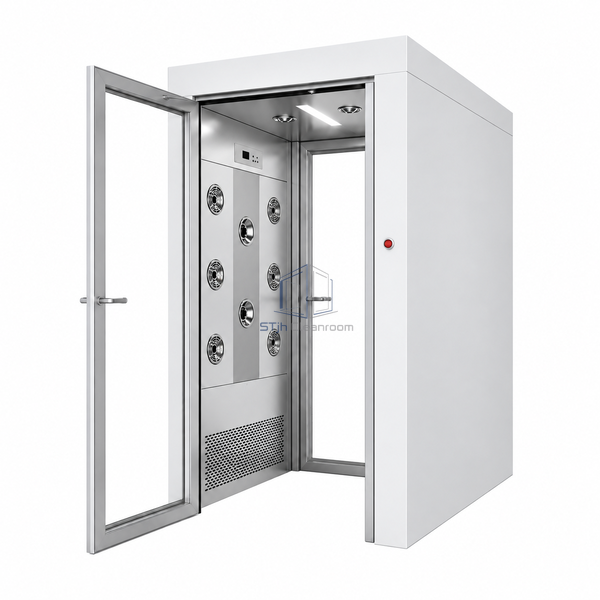

STjh floorless two-person air shower with a 1500 mm deep passage, six guarded outer wall jets and two central adjustable jets

STJH-TWO-PERSON-AIR-SHOWER-770X1500

Two-Person Cleanroom Air Shower 770 × 1500 mm

A narrow one-to-two-person air shower with a 1500 mm long floorless passage and one jet section.

One-to-two-person capacity
1500 mm passage depth
Single 18-nozzle section

Request a Quote Browse Products

Product Introduction

This compact group-entry chamber provides a 770 x 1500 x 1935 mm clear path inside an 1100 x 1500 x 2100 mm body. Eighteen nozzles occupy both walls and the ceiling across one service section. It accommodates one or two people while consuming less depth than the 2000 mm two-section model.

Key Features

Compact paired entry

The 1500 mm chamber allows two-person use without the depth of a full two-section tunnel.

Narrow floor plan

A 770 mm clear width suits single-file movement where the corridor cannot accept a wide chamber.

Ceiling-assisted coverage

Two overhead jets supplement the opposing side-wall nozzle banks.

Technical Parameters

External Dimensions	1100 x 1500 x 2100 mm
Clear Passage	770 x 1500 x 1935 mm
Capacity	1-2 people
Nozzle Count	18
Nozzle Pattern	8 per wall plus 2 ceiling
Jet Sections	1
Floor Configuration	Floorless
Doors	Interlocked manual aluminium
Power Supply	AC 200 V, three phase, 50/60 Hz
Customization	Available based on the intended application and operating environment.

Applications

For paired personnel entry at compact pharmaceutical, electronics or laboratory cleanrooms where the route is narrow but a longer-than-single-person blow zone is useful. Occupancy should not obstruct the nozzle field.

Solutions for Your Application

A standard single-user chamber creates a queue during shift changes.Use the 1500 mm passage for one or two operators while retaining a compact single section.

Two occupants could shield each other from side jets.Define standing positions that keep both side-wall banks and the ceiling outlets unobstructed.

Available Options

Set door handing, cycle duration, control logic, floor seal, access reader and finish. Occupancy markings can be matched to the nozzle distribution.
