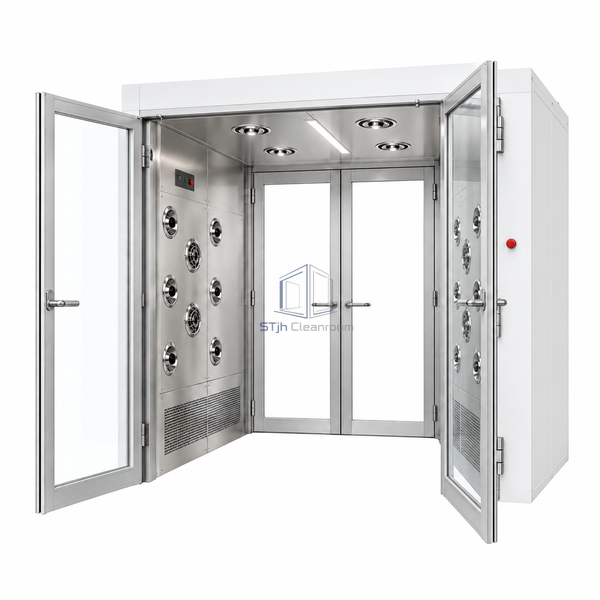

STjh wide floorless air shower with twin glazed doors, a 1370 mm passage, paired side nozzle panels and four overhead jets

STJH-TWO-PERSON-AIR-SHOWER-1370X1000

Two-Person Cleanroom Air Shower 1370 × 1000 mm Wide

A wide, short personnel chamber for side-by-side one-to-two-person cleanroom entry.

1370 mm clear width
1000 mm short passage
20 surrounding nozzles

Request a Quote Browse Products

Product Introduction

This configuration widens the clear passage to 1370 mm while limiting its depth to 1000 mm. The 1700 x 1000 x 2100 mm enclosure contains 20 nozzles: eight on each opposing wall and four overhead. It is the family choice for side-by-side movement, contrasting with the narrow 1500 and 2000 mm deep chambers.

Key Features

Side-by-side clearance

The broad passage permits two occupants or wider garments without extending the chamber into the corridor.

Wider ceiling jet field

Four overhead nozzles complement the two eight-nozzle wall banks across the enlarged width.

Short transfer distance

A 1000 mm depth keeps entry and exit doors close for layouts where longitudinal space is scarce.

Technical Parameters

External Dimensions	1700 x 1000 x 2100 mm
Clear Passage	1370 x 1000 x 1935 mm
Capacity	1-2 people
Total Nozzles	20
Side-Wall Nozzles	16, eight per side
Ceiling Nozzles	4
Chamber Format	Wide, single section
Floor	Floorless
Power	AC 200 V, three phase, 50/60 Hz
Customization	Available based on the intended application and operating environment.

Applications

Suitable for side-by-side personnel entry, bulky cleanroom garments and routes that need width more than depth. The broad doorway should be coordinated with corridor clearance and the intended interlocked door swing.

Solutions for Your Application

A narrow single-file shower slows paired entry.Use the 1370 mm passage and mark two positions within the opposing nozzle field.

A two-metre-deep chamber will not fit the available vestibule.Select the 1000 mm deep wide layout and allocate more wall opening instead of corridor depth.

Available Options

Specify door arrangement, floor seal, operating timer, occupancy markings, lighting and access control. Double-leaf doors can be considered for the wider passage.

Planning a Two-Person Cleanroom Air Shower 1370 × 1000 mm Wide specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
