Could an in-wall track complicate an existing opening?
The selected support mounts on the surface above the door and its return path.
STJH-TOUGHENED-GLASS-CLEANROOM-DOOR-SINGLE-SLIDE-6

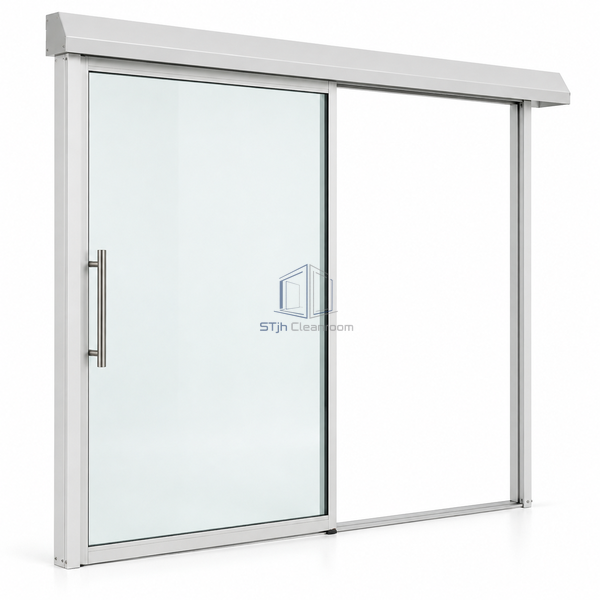

Toughened Glass Cleanroom Door 6 mm Single-Leaf Sliding
A manually operated single glass slider with a surface-mounted track and 6 mm toughened glazing.
- A single moving leaf simplifies the visible door arrangement.
- Sloped beading reduces horizontal ledges at the glazing junction.
- Surface mounting places the sliding support outside the wall cavity.
Product Introduction
One glazed leaf travels laterally on a track mounted across the doorway and the adjacent return space. The panel uses a single 6 mm toughened pane held within a powder-coated aluminum profile, with sloped beading at the glass junction. Manual pull operation keeps the assembly straightforward. The surface-sliding layout is suitable where full visibility is useful and a door opening into the approach area would be inconvenient.
Key Features
- A single moving leaf simplifies the visible door arrangement.
- Sloped beading reduces horizontal ledges at the glazing junction.
- Surface mounting places the sliding support outside the wall cavity.
Technical Parameters
| Glazing | Single toughened pane |
|---|---|
| Pane Thickness | 6 mm |
| Leaf Count | One |
| Operation | Manual surface slide |
| Surround Material | Powder-coated aluminum |
| Glass Retention | Sloped beading |
| Track Position | Surface mounted above opening and return |
| Canopy Form | Sloped top |
| Opening Layout | One-sided lateral runback |
| Customization | Available for the intended viewing and space requirements. |
Applications
- Glazed laboratory access beside a usable wall return.
- Clean support entrances with restricted swing clearance.
Solutions for Your Application
Will sliding operation remove the view through the entrance?
A full-area clear toughened pane maintains visibility while the leaf is closed.
Available Options
- Stainless steel surround option.
- Flat-top canopy where the mounting detail requires it.
Planning a Toughened Glass Cleanroom Door 6 mm Single-Leaf Sliding specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
