Is one long wall pocket needed for the whole opening?
The two panels return toward opposite sides, distributing the required runback.

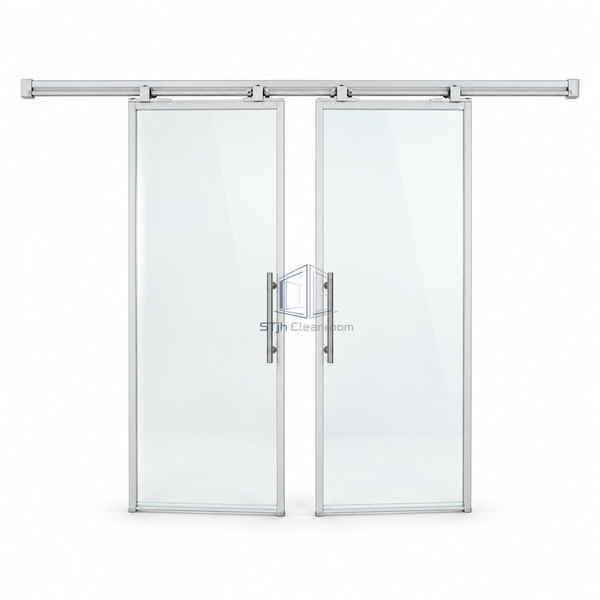

STJH-TOUGHENED-GLASS-CLEANROOM-DOOR-BIPARTING-SLIDE-6
Toughened Glass Cleanroom Door 6 mm Bi-Parting Sliding
A pair of manually sliding glass leaves that open away from the centre of a glazed cleanroom entrance.
- Paired leaves divide the lateral return between both sides.
- Clear glazing preserves visual contact across the full doorway.
- A central meeting line defines the opening between the two panels.
Product Introduction
Two clear toughened-glass leaves form this bi-parting surface-sliding assembly. Each blade contains a single 6 mm pane supported by an aluminum profile, and the leaves meet along the centre of the doorway. Overhead tracking spans the opening and both return areas. Manual operation allows the panels to move aside without a hinged sweep, providing a broad glazed entrance where space is available on both sides of the opening.
Key Features
- Paired leaves divide the lateral return between both sides.
- Clear glazing preserves visual contact across the full doorway.
- A central meeting line defines the opening between the two panels.
Technical Parameters
| Opening Configuration | Bi-parting surface slide |
|---|---|
| Moving Panels | Two |
| Glass Material | Clear toughened safety glass |
| Glass Thickness | 6 mm per pane |
| Pane Arrangement | Single glazing in each leaf |
| Surround Finish | Powder-coated aluminum |
| Actuation | Manual |
| Support Position | Overhead surface track |
| Runback | Available on both sides of the opening |
| Customization | Available for the intended opening width and surrounding layout. |
Applications
- Wide glazed laboratory circulation openings.
- Clean observation routes with lateral return space on both sides.
Solutions for Your Application
Will the paired format introduce opaque central panels?
Both moving blades remain full-area toughened glass within slim surrounding profiles.
Available Options
- Surround in stainless steel.
- Sloped or flat canopy profile.
Planning a Toughened Glass Cleanroom Door 6 mm Bi-Parting Sliding specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
