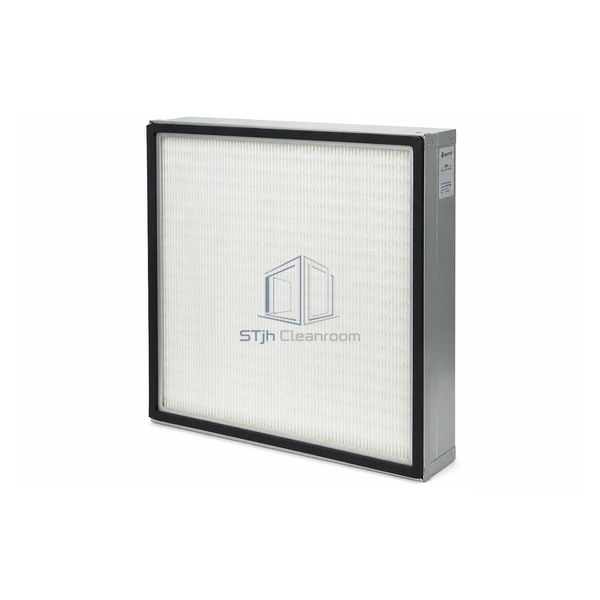

STjh 610 mm H13 terminal HEPA filter with gasket seal main view

STJH-TERMINAL-HEPA-H13-GASKET-610

Terminal HEPA Filter 610 mm H13 Gasket-Seal

A full ceiling-module H13 panel with a continuous polyurethane gasket for compression-seal terminal housings.

610 mm full ceiling module
H13 microglass mini-pleats
Continuous PU foam gasket

Request a Quote Browse Products

Product Introduction

This approximately 610 × 610 mm terminal filter combines H13 microglass mini-pleat media with an anodized aluminum frame. A continuous polyurethane foam gasket provides the perimeter interface for a compatible clamped housing. The model is intended for turbulently ventilated pharmaceutical and healthcare cleanrooms that use mechanical gasket compression rather than a knife edge entering a gel trough.

Key Features

Compression-seal interface

The continuous gasket closes against a flat housing surface when uniform mechanical pressure is applied.

Full-module terminal coverage

The square face suits common cleanroom ceiling bays and turbulent supply patterns.

Light rigid frame

Anodized aluminum supports the mini-pleat pack while remaining practical for room-side handling.

Technical Parameters

Nominal Face Size	Approximately 610 × 610 mm
Filter Grade	H13
Media	Microglass mini-pleat
Frame Material	Anodized aluminum
Seal Type	Continuous polyurethane foam gasket
Housing Interface	Flat compression-seal surface
Module Format	Full cleanroom ceiling panel
Air Distribution	Turbulent terminal supply
Installation Method	Uniform mechanical clamping
Customization	Available based on the intended application and operating environment.

Applications

Used in pharmaceutical support rooms, hospital clean spaces and controlled manufacturing ceilings fitted with gasket-compression terminal housings. The housing face, gasket width and clamping force must be compatible to prevent perimeter bypass.

Solutions for Your Application

The terminal housing has a flat sealing land and cannot accept a gel-channel filter.Use the continuous PU gasket model and apply even compression around the full frame.

Overcompression permanently damages the gasket and complicates replacement.Set the retaining mechanism to the specified compression range rather than tightening individual points unevenly.

Available Options

Specify exact face dimensions, gasket position and thickness, faceguard, frame flange and housing clamp arrangement.
