A shallow window misses activity above the immediate bench surface.
The 1000 mm height provides additional vertical viewing area.
STJH-TEMPERED-SAFETY-GLASS-CLEANROOM-WINDOW-1000X1000-6T

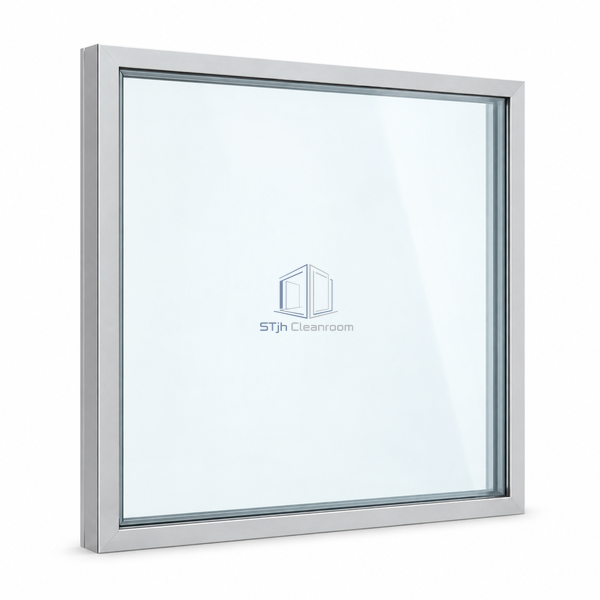

Tempered Safety Glass Cleanroom Window 1000 x 1000 mm Square with Toughened Glazing
A square 1000 x 1000 mm flush observation module with double 6 mm toughened glazing.
- Square geometry works well in evenly spaced partition modules.
- The one-metre height adds vertical visibility around standing work positions.
- Two clear glass faces preserve observation from both adjoining spaces.
Product Introduction
The equal-sided window footprint provides a square viewing area within the flush double-glazed system. Clear 6 mm toughened glass is selected for the glazing build, giving the unit a straightforward observation function without privacy or shielding layers. At 1000 mm high, the module extends the vertical field beyond a low viewing band while retaining a one-metre width. It can be centered over a work position or incorporated into a repeating modular partition layout.
Key Features
- Square geometry works well in evenly spaced partition modules.
- The one-metre height adds vertical visibility around standing work positions.
- Two clear glass faces preserve observation from both adjoining spaces.
Technical Parameters
| Nominal Width | 1000 mm |
|---|---|
| Nominal Height | 1000 mm |
| Outline Geometry | Square |
| Glazing Thickness | 6 mm |
| Glass Construction | Toughened clear glass |
| Pane Arrangement | Double glazed |
| Wall-Face Style | Flush glazing system |
| Viewing Layout | Undivided opening |
| Operation | Fixed window |
| Customization | Mounting interfaces and perimeter accessories can be configured for the intended square observation opening. |
Applications
- Centered workstation observation windows
- Repeating square glazing modules in cleanroom partitions
Solutions for Your Application
Unequal window proportions disrupt a regular wall-module layout.
Use the equal 1000 mm sides to align the viewing element with a square design grid.
Available Options
- Matching wall-joint profiles
- Application-compatible perimeter sealing
Planning a Tempered Safety Glass Cleanroom Window 1000 x 1000 mm Square with Toughened Glazing specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
