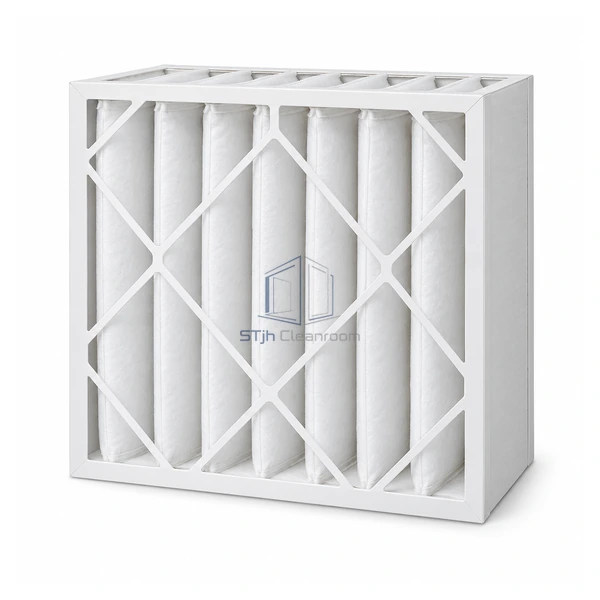

STjh MERV 14 synthetic medium filter main product view

STJH-SYNTHETIC-MEDIUM-FILTER-MERV14

Synthetic-Fiber Medium-Efficiency Filter MERV 14

A MERV 14 synthetic rigid filter for facilities that need finer capture without a glass-fiber media pack.

MERV 14 fine filtration
Meltblown synthetic media
Moisture-resistant rigid construction

Request a Quote Browse Products

Product Introduction

The MERV 14 version raises fine-particle performance while retaining meltblown synthetic media, galvanized steel framing and a nominal 292 mm depth. Its moisture-resistant construction supports hospital, laboratory and clean manufacturing ventilation where a durable glass-free pack is preferred. Metal-backed pleats maintain separation during variable-volume operation.

Key Features

Finer synthetic capture

MERV 14 performance removes a greater portion of small particulate than the MERV 11 family model.

Protected deep pleats

The galvanized cell shields the synthetic pack during transport, installation and service.

Reliable VAV geometry

Metal backing helps the pleats retain their working spacing as system airflow changes.

Technical Parameters

Nominal Filter Depth	292 mm
Efficiency Rating	MERV 14
Media Composition	Meltblown synthetic fiber
Frame Construction	Galvanized steel
Media Support	Rigid metal-backed pleats
Temperature Limit	93 °C
Humidity Suitability	Moisture-resistant HVAC service
Operating Mode	Constant or variable airflow
Recommended Position	Fine intermediate filtration
Customization	Available based on the intended application and operating environment.

Applications

Suitable for hospital supply AHUs, research laboratories and clean industrial systems seeking MERV 14 filtration with synthetic media. It can reduce downstream HEPA loading where humidity variability or a glass-free preference influences media selection.

Solutions for Your Application

A moderate synthetic filter does not capture enough fine dust before the final stage.Move to the MERV 14 pack while retaining the same moisture-resistant synthetic construction.

Filter media shifts under variable air volume and loses uniform spacing.The metal-backed pleat structure and rigid galvanized frame stabilize the pack.

Available Options

Confirm module face, header configuration, gasket side, operating temperature and desired change-out resistance.

Planning a Synthetic-Fiber Medium-Efficiency Filter MERV 14 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
