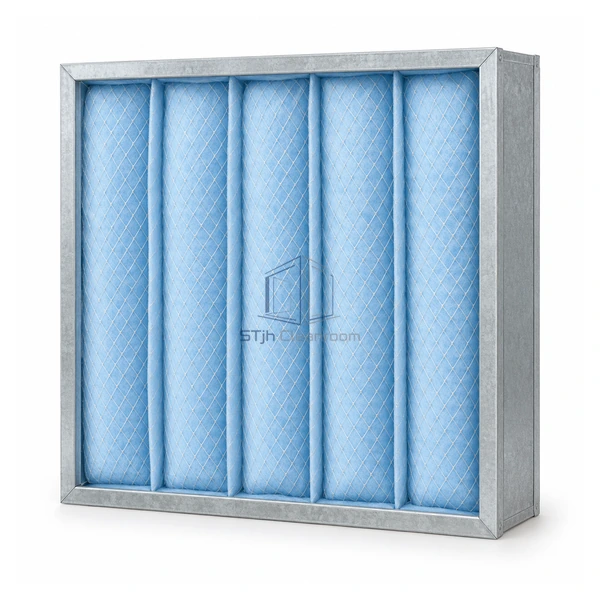

STjh MERV 11 synthetic medium filter main product view

STJH-SYNTHETIC-MEDIUM-FILTER-MERV11

Synthetic-Fiber Medium-Efficiency Filter MERV 11

A moisture-resistant MERV 11 rigid cell for variable-air-volume systems that prefer synthetic media.

MERV 11 synthetic medium
292 mm rigid cell
Up to 93 °C operation

Request a Quote Browse Products

Product Introduction

This nominal 292 mm rigid filter uses meltblown synthetic media in a galvanized steel frame. Its MERV 11 family rating provides moderate intermediate filtration while avoiding a glass-fiber media pack. The moisture-resistant, metal-backed pleat structure is intended for general clean-process AHUs exposed to humidity changes and repeated fan cycling.

Key Features

Glass-free media choice

Meltblown synthetic fibers provide an alternative where a glass-fiber filter medium is not preferred.

Humidity-tolerant construction

The synthetic pack is suited to normal HVAC moisture variation without relying on paper-like support.

Variable-flow stability

A rigid metal-backed pleat assembly limits movement through changing air-volume conditions.

Technical Parameters

Nominal Depth	292 mm
Efficiency Family	MERV 11 or MERV 12
Filter Medium	Meltblown synthetic fiber
Outer Frame	Galvanized steel
Pleat Support	Rigid metal-backed construction
Maximum Temperature	93 °C
Moisture Response	Moisture-resistant media pack
Airflow Mode	Variable-air-volume compatible
Filtration Duty	General clean-process intermediate stage
Customization	Available based on the intended application and operating environment.

Applications

Used in general clean-process AHUs, humid outside-air sections and ventilation systems with frequent fan start-stop cycles. The MERV 11 model is appropriate when durable synthetic media is desired without specifying the higher resistance of a finer grade.

Solutions for Your Application

Glass-fiber media is unsuitable for the facility's handling preference.The meltblown synthetic pack provides a glass-free medium inside a protected rigid cell.

Repeated humidity and fan cycling distort a conventional filter.Use the moisture-resistant, metal-backed pleat structure and maintain effective upstream drainage.

Available Options

Choose MERV 11 or 12 family performance, face dimensions, header style and gasket configuration for the AHU bank.
