STJH-SWIRL-CEILING-AIR-DIFFUSER-600

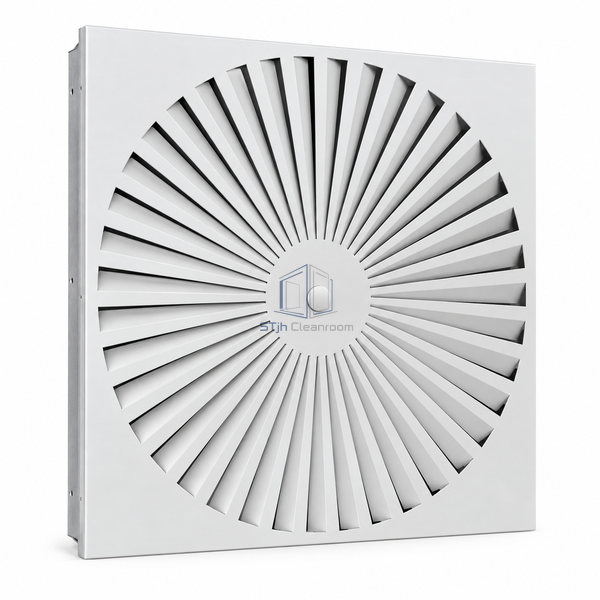

Swirl Ceiling Air Diffuser 600 mm

Large modular swirl face for substantial mixed-air ceiling supply.

Broad swirl field distributes air around a large outlet.
Modular square format suits wider ceiling grids.

Request a Quote Browse Products

Product Introduction

A 538 mm radial discharge pattern fits inside the nominal 600 mm square plate. The broad fixed-vane arrangement provides a large mixed-air outlet while maintaining a shallow room-side face.

Key Features

Broad swirl field distributes air around a large outlet.
Modular square format suits wider ceiling grids.

Technical Parameters

Nominal Module	600 mm
Square Face Dimensions	598 x 598 mm
Active Diameter	538 mm
Effective Outlet Area	0.0295 m²
Discharge Type	High-induction horizontal swirl
Vane Arrangement	Fixed radial pattern
Face Construction	Galvanized steel
Surface Finish	White RAL 9010 powder coat
Supply Temperature Offset	-12 to +10 K relative to room
Customization	Available for the intended large-room distribution and ceiling environment.

Applications

Large controlled support spaces
Broad modular mixed-air ceiling supply

Solutions for Your Application

A large supply duty needs a wider terminal pattern within the ceiling module.

The 538 mm active diameter spreads the discharge across most of the square face.

Available Options

Supply plenum with damper
Alternative face coating
