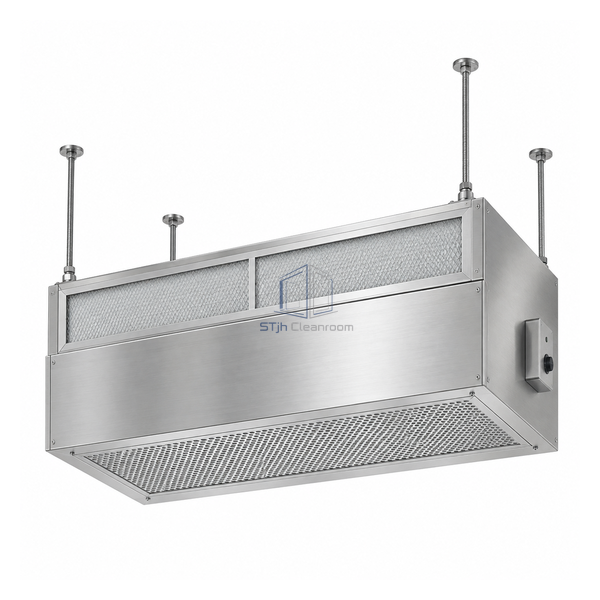

STjh compact 30 by 50 inch suspended HEPA laminar-flow hood with four ceiling rods and underside diffuser

STJH-SUSPENDED-LAMINAR-FLOW-HOOD-30X50

Ceiling-Suspended Laminar Flow Hood 30 × 50.5 in

The smallest cited suspended fan-filter footprint for localized HEPA-filtered vertical airflow above compact equipment.

30 x 50.5 in minimum footprint
Front-serviceable blower and filter
HEPA vertical airflow

Request a Quote Browse Products

Product Introduction

This 30 x 50.5 in configuration is the smallest published size in the suspended vertical-flow family. It can hang from the ceiling or mount on a support frame above a compact instrument. The filter, blower and optional light are serviceable from the front, and the prefilter can be placed on top or front when overhead access is limited.

Key Features

Compact local coverage

The smallest family footprint targets a defined instrument or short process area without filtering a full room.

No-plenum service access

Front access to the filter and blower supports maintenance where the ceiling space cannot be entered.

Flexible prefilter position

Top or front placement lets the intake remain serviceable around suspension rods and nearby utilities.

Technical Parameters

Module Size	30 x 50.5 in
Airflow Direction	Vertical downflow
Mounting	Ceiling-suspended or frame-mounted
Final Filter	HEPA, 99.99% at 0.3 µm
Prefilter Position	Top or front
Service Access	Front
Housing Options	Painted or stainless steel
Electrical Option	220 V, 50 Hz available
Lighting Option	Front-serviceable diffuser light
Customization	Available based on the intended application and operating environment.

Applications

For localized clean-air protection above compact semiconductor, optics or medical-device equipment when ceiling-plenum access is unavailable. Suspension points and the protected footprint should be coordinated with the machine envelope.

Solutions for Your Application

A standard ceiling-grid FFU cannot be serviced from above the equipment.Use the front-service suspended module and keep its access panel clear.

A large hood wastes filtered airflow around a compact process.Select the 30 x 50.5 in footprint and align it directly over the critical area.

Available Options

Choose painted or stainless housing, front/top prefilter, light diffuser, power cord and 220 V 50 Hz supply. Suspension hardware and support frame can be adapted to the equipment layout.
