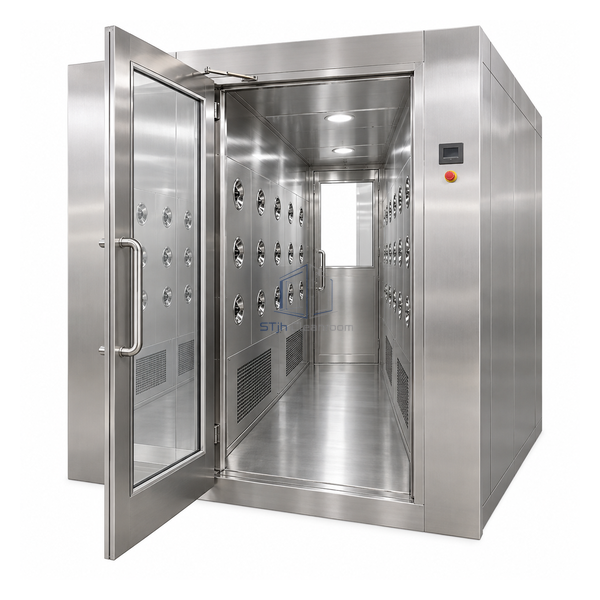

STjh two-to-three-person SUS304 air shower with a 2000 mm passage and two stainless nozzle sections

STJH-SUS304-AIR-SHOWER-2TO3PERSON

Stainless Steel Air Shower SUS304 Two-to-Three-Person

A two-metre stainless air shower sized for two to three operators per controlled entry cycle.

Two-to-three-person capacity
24 bilateral nozzles
1900 mm internal depth

Request a Quote Browse Products

Product Introduction

This intermediate SUS304 model doubles external depth to 2000 mm and provides an 800 x 1900 x 1960 mm occupied passage. Twenty-four nozzles form two-sided blow-off zones for two to three people, with maximum power rising to 2.2 kW. It targets medium traffic where stainless cleanability is required but the three-metre family member would be oversized.

Key Features

Medium-throughput staging

The longer chamber lets a small group enter together during routine shift or batch movement.

Expanded bilateral jet field

Twenty-four outlets reduce the uncovered length that would result from using the compact nozzle bank.

Cleanable stainless envelope

SUS304 surfaces support wash-down by wiping in hygienic pharmaceutical and food transitions.

Technical Parameters

Overall Dimensions	1400 W x 2000 D x 2100 H mm
Occupied Passage	800 W x 1900 D x 1960 H mm
User Capacity	2-3 people
Body Material	100% SUS304 stainless steel available
Nozzles	24, two-sided
Nozzle Opening	30 mm diameter
Jet Speed	>25 m/s
Maximum Consumption	2.2 kW
Power Basis	380 V, 50 Hz; alternate voltage available
Customization	Available based on the intended application and operating environment.

Applications

For medium-use pharmaceutical, biotechnology, food and laboratory gowning airlocks. Mark standing positions or control group size so users do not block the two-sided jets or door sensors.

Solutions for Your Application

Single-person cycles create a queue at a moderately busy entrance.Use the 1900 mm chamber to process two or three properly spaced operators together.

A longer stainless body is difficult to move through an existing facility.Specify knock-down shipment and plan internal assembly around the available doorway and service path.

Available Options

Select electrical supply, automatic or manual operation, access reader, infrared sensing, door format and knock-down delivery. Alternative surface materials should not be substituted when the full-SUS304 requirement is essential.
