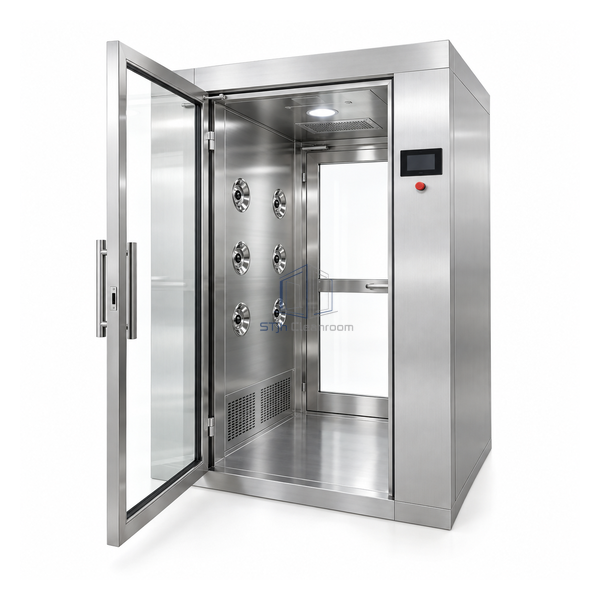

STjh compact one-person SUS304 air shower with a short brushed stainless-steel chamber and glazed doors

STJH-SUS304-AIR-SHOWER-1PERSON

Stainless Steel Air Shower SUS304 One-Person

A compact full-SUS304 air shower for one-person hygienic entry and frequent surface cleaning.

Full SUS304 construction available
12 two-side nozzles
1.1 kW maximum power

Request a Quote Browse Products

Product Introduction

The shortest stainless model combines a 1400 x 1000 x 2100 mm exterior with an 800 x 900 x 1960 mm internal passage. Twelve bilateral stainless nozzles provide more balanced garment exposure than a single-side compact unit, while maximum power is limited to 1.1 kW. SUS304 interior and exterior surfaces suit facilities that prioritize wipeable, corrosion-resistant construction.

Key Features

Hygienic metal surfaces

SUS304 inside and outside avoids painted internal faces in frequently cleaned transition areas.

Bilateral one-person coverage

Six nozzles per side direct high-velocity air across both sides of a single user.

Smallest family footprint

The one-metre external depth fits lower-traffic entrances without installing unused tunnel length.

Technical Parameters

External Size	1400 W x 1000 D x 2100 H mm
Internal Size	800 W x 900 D x 1960 H mm
Rated Occupancy	1 person
Construction	SUS304 stainless steel interior and exterior available
Nozzle Count	12, two-side arrangement
Nozzle Diameter	30 mm
Air Velocity	>25 m/s
Maximum Power	1.1 kW
Control	LCD PLC control with electronic door interlock
Customization	Available based on the intended application and operating environment.

Applications

For low-traffic pharmaceutical, food, biotechnology and laboratory entrances where stainless surfaces are favored for cleaning. The one-person limit prevents users from shielding each other from the bilateral jet field.

Solutions for Your Application

Painted panels may not suit the cleaning chemicals or hygiene routine.Specify SUS304 for both internal and external surfaces and review chemical compatibility for the chosen agents.

A multi-person unit adds avoidable cost and floor depth at a quiet entrance.Use the 900 mm internal route for controlled single-person cycles.

Available Options

Choose voltage, door configuration, infrared start, access control, UV option and shipment as assembled or knock-down sections. Confirm cleaning-agent compatibility with SUS304 and seals.

Planning a Stainless Steel Air Shower SUS304 One-Person specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
