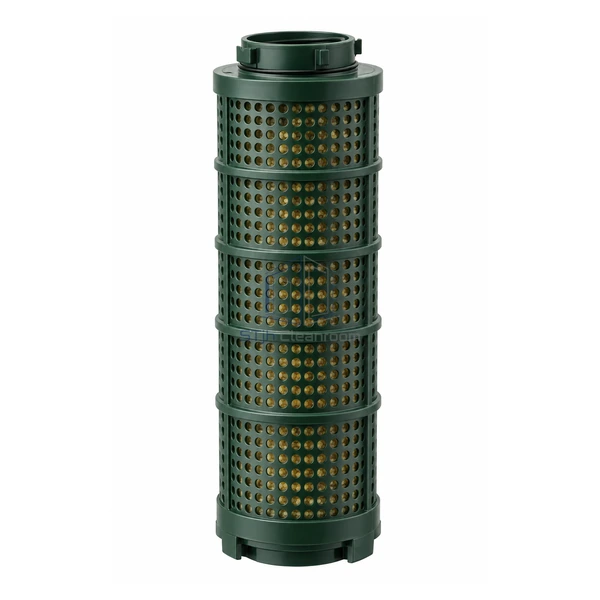

STjh medium CYL2600 sulfur-gas molecular filter cylinder main view

STJH-SULFUR-MOLECULAR-FILTER-CYL2600

Sulfur Compound Molecular Filter 2600-Class H2S and Mercaptan

A medium-length sulfur-gas cartridge balancing adsorbent capacity, service handling and airflow.

452 mm medium bed
2500 m3/h bank airflow
135 Pa clean drop

Request a Quote Browse Products

Product Introduction

This 452 mm cartridge doubles the documented 16-cylinder system airflow of the compact version while retaining a manageable service length. Its H2S and mercaptan-target adsorbent is suitable for moderate industrial sulfur loads, and the 135 Pa initial resistance provides a defined fan-selection point. The longer bed offers more treatment capacity than the 240 mm model without requiring the maximum-depth cabinet used by the 595 mm cylinder.

Key Features

Balanced media depth

The medium cylinder adds adsorbent volume while remaining easier to remove than the longest cartridge.

Moderate-flow duty

A sixteen-cartridge frame supports 2500 m3/h for standard industrial recirculation or exhaust.

Purpose-selected impregnation

Media chemistry is chosen for reduced sulfur gases that can cause odor and metallic corrosion.

Technical Parameters

Cylinder Diameter	148 mm
Cylinder Length	452 mm
Bank Airflow	2500 m3/h for 16 cylinders
Initial Pressure Drop	135 Pa
Target Contaminants	Hydrogen sulfide and mercaptans
Media Type	Impregnated sulfur-gas adsorbent
Mounting	Twist-lock cartridge plate
Operating Duty	Industrial recirculation or exhaust
Change Criterion	Calculated capacity or downstream gas trend
Customization	Available based on the intended application and operating environment.

Applications

Applicable to industrial exhaust, recirculation and cleanroom support-air systems with moderate H2S or mercaptan loading and sufficient service depth.

Solutions for Your Application

The molecular stage is sized only by airflow and overlooks the actual sulfur mass load.Select media quantity from concentration, humidity, temperature and required life, then use 2500 m3/h only as the hydraulic basis.

Uneven flow exhausts some cartridges before the rest of the bank.Provide an upstream diffuser and inspect sealing so each cylinder receives a comparable share of the airflow.

Available Options

Confirm contaminant profile, airflow, number of cartridges, housing material, prefilter grade, monitoring points and safe media handling.
