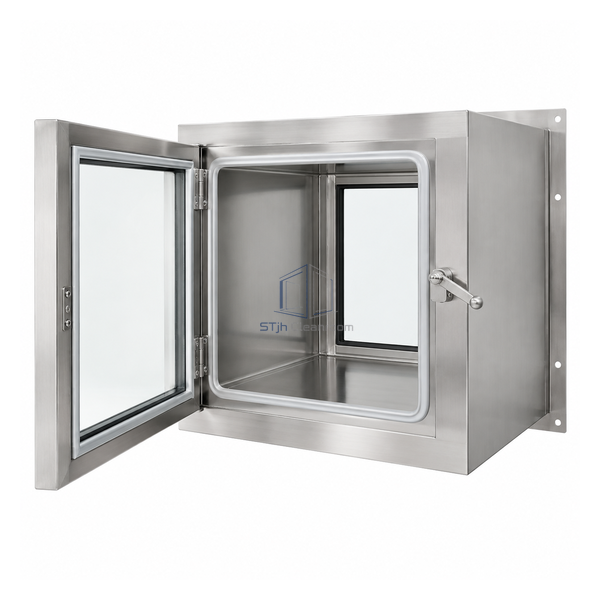

STjh medium 18 inch cubic static 304 stainless steel pass box with open glass front door and mechanical interlock

STJH-STATIC-PASS-BOX-18X18X18

Static Cleanroom Pass Box 18 × 18 × 18 in

A medium passive transfer chamber sized for laboratory trays, packaged tools and routine production materials.

18 in cubic load space
Tempered viewing windows
Silicone bulb door gaskets

Request a Quote Browse Products

Product Introduction

The 18 in cubic chamber accepts common laboratory trays and small bins while remaining manageable within a wall-mounted format. Tempered safety-glass windows allow both operators to check occupancy before opening, and silicone bulb gaskets improve closure around the passive chamber. Mechanical interlocking avoids simultaneous door opening without adding an electrical control requirement.

Key Features

Useful tray capacity

The intermediate cube carries broader loads than the 12 in model without becoming a floor-level cabinet.

Visual transfer check

Windows let users see material and opposite-door status before operating the latch.

Resilient door seal

Silicone bulb gaskets compress around the opening to reduce uncontrolled leakage paths.

Technical Parameters

Inside Dimensions	18 W x 18 D x 18 H in
Chamber Material	304 stainless steel
Window Material	Tempered safety glass
Door Gasket	Silicone bulb
Air System	Static, non-filtered
Door Interlock	Mechanical
Door Count	2 opposing doors
Installation	Wall mounted
Typical Load	Trays, tools and packaged materials
Customization	Available based on the intended application and operating environment.

Applications

For routine transfer between laboratories, preparation rooms and clean production areas. Select tray and bin sizes that leave space for lifting and do not drag across the door gasket.

Solutions for Your Application

Operators cannot see whether the chamber is occupied from the opposite side.Use the tempered windows to confirm load and door status before cycling the mechanical interlock.

Frequent tray contact can damage the lower door seal.Keep loads within the 18 in opening and inspect the silicone bulb gasket at scheduled intervals.

Available Options

Specify shelf, door handing, flush or surface trim and stainless finish. An active filtered pass box is preferable for unpackaged particle-sensitive loads.

Planning a Static Cleanroom Pass Box 18 × 18 × 18 in specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
